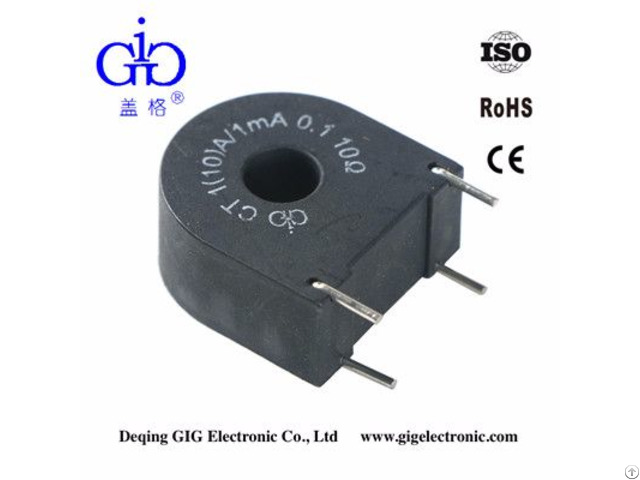

Pcb Use Modular Meter Toroidal High Frequency Current Transformer - China

1 - Electric strength: not less than 4kV/1mA/1min

Relative humidity: less than or equal to 95% (25 Degrees Celsius)

Altitude: less than or equal to 10000m

High precision suitable for kWh meter class 0.2, class 0.5, class 1.0

Typical phase shift is at 1-10', additional compensation is not needed

Reliable and stable performance at different temperature conditions

Quick connection to PCB available on request

RoHS Directive-compliant is available on request 2 - Primary current: 1A

Imax: 10A

Accuracy class: 0.1%

Turns ratio: 1: 1000

Frequency: 50-60 HZ

Load resistance: 10 Ohm

Withstanding volt: 4000V/1min

Ambient temp: -40-+70 Degrees Celsius

Storage temp: -40-+80 Degrees Celsius

Encapsulate: epoxy

Dielectric strength: not less than 4kV/1mA/1min.

Operating temperature: -40 to +85 Degrees Celsius

Relative humidity: less than or equal to 95% Typical phase shift is at 1-10’, additional compensation is not needed.

Very reliable and stable performance at different temperature conditions
