Piezo Ceramic Ring Stack Blocking Force To 8000n Low Power Consumption - China

price: contact company for price

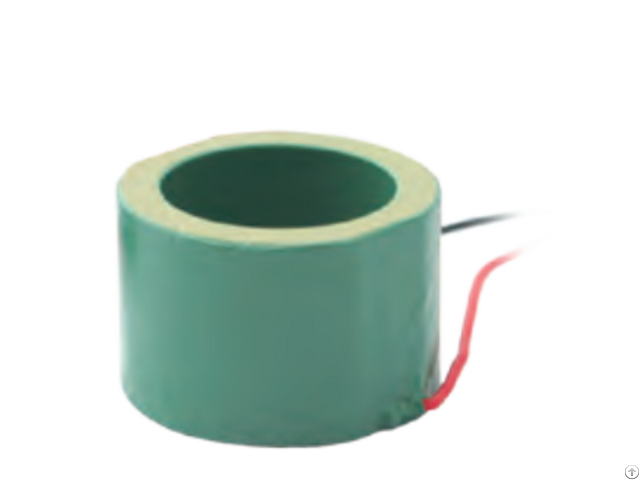

Piezo Ceramic Ring Stack Blocking Force To 8000n Low Power Consumption

Products Photos Catalog Piezo Ceramic Ring Photos Catalog

Piezo ceramic ring stack、low power consumption、blocking force to 8000N Type：HPSt150/20-15/x Material Properties

Material: PZT(PZT5H) Rel.

dielectric constant εref: 5400 Loss factor: 200×10-4 Coupling factor: KP=0.62, K31=0.34, K33=0.68 Piezo coefficient: d31=-290pm/V, d33=+635pm/V Elast.

compliance: S33E =18.1×10-12m²/N, S11E =14.8×10-12m²/N Frequency constant: Radial=2040m/sec, Thickness=1800m/sec, Transverse=1410m/sec, Longitudinal=1370m/sec Quality factor(resonance): 70 Density: 8g/cm³ Curie temperature: 150°C Specific heat: 380Ws/°K kg Thermal conductivity: ca.

1.5 Ws/m·K(axial direction) Above-mentioned parameters can vary significantly with the operating electrical field strength.

Temperature

Operating temperature: -50~+100°C(according to resin).

If >100°C, PZT performance will be reduced reversibly Above Curie temperature, piezo actuators will be permanently depolarized.

Technical data

Eg：HPSt150/20-15/25

Max.

/Stroke[μm]±15% 32/25

El.

capacitance [μF]±20%：10

Stiffness [N/μm]±20%：230

Resonant frequency [kHz]±20%：22

Blocking Force [N]：8000


Company Contact:


  • Phone: 0451-86268790

  • Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin，China, Harbin , China , China

  • Email: Email


Published date: December 27, 2023

  • Business Description: CoreMorrow Ltd. focuses on research，development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.

    After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.

    We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
