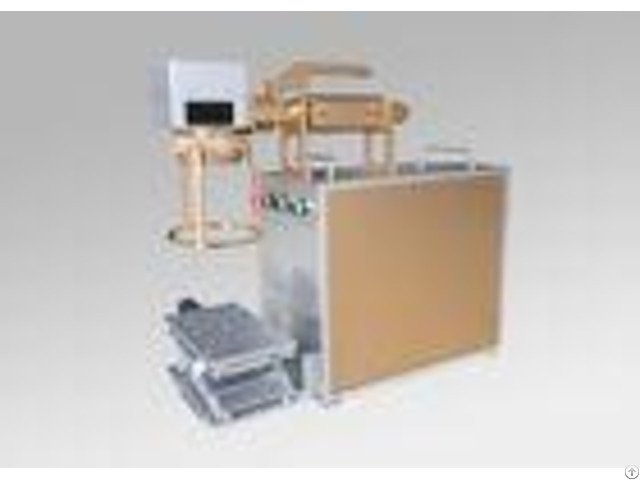

Portable Handheld Type Fiber Laser Marking Machine With 20w 30w - China

Product Description: .

Handheld type marking machine, all-in-one design ensure high reliability of the laser, without any optics to adjust collaborating.

.

Removable integrated system design makes it more convenient for customers to use, provides the ideal solution for a variety of industrial application.

.

Using environment is liberal, indoor, outdoor can be applied, easy to carry.

The laser head is removable, apply to any angle to mark.

--Printable numbers, characters, letters, graphics support automatic coding, serial number, batch number, date, barcodes, two dimensional codes automatically jump number.

--Our program has a variety of power fiber laser, you can get different laser effects ( metals, plastics, ceramics, etc.

) on most materials.

Laser Applications.

--Support PLT, PCX, DXF, BMP and other documents, directly using SHX, TTF font.

--Support barcode font.

--Scalable Software flight marks.

--You may need to set the automatic serial number, date, time, according to the production.

--You can read text data directly via the serial port.

--Powerful fill feature, filling the annular support.

--Open multiple languages, can easily support world languages.

--Automatic segmentation of text function, it can adapt to the complex processing conditions.

Technical Parameters: - - - - Type | Fiber Laser Marking Machines | Model Number | RL-20H | Table size | 320*200mm | Weight | 30KG | Material | Aluminum | Laser wavelength | 1060nm | Laser power | 10W or 20W or 30W optional | Laser Type | pulsed or continuous | Marking depth | 0 - 5mm as the material may | Marking line speed | 7000mm / s | Minimum characters | 0.15mm | The minimum line width | 0.012mm | Repeatability | 0.002 | Repeatability | Standard 100mmX100mm | Operating Life | laser Run> 100, 000 hours | Dimensions | 450 mm X 540 mm X 800 mm Weight 45 kg | Work table | 320 mm X 200 mm bearing 30 kg | Lifting heigh | lifting 550 | Cooling system | Air cooling | Operating System | WinXP / Win7 | Graphic Converter | CAD, CorelDRAW, CAXA | Environment | -20 C-45 C, relative humidity 80% | - - - - Machine Accessories: Application: Handheld type fiber laser marking machine for a wide range of application, mainly for all kinds of metal and most plastic.

Can be held to mark any position of some big and heavy products which can not be moved easily.

Especially suitable for hardware tools, kitchenware knifes, plastic products, metal jewelry, buttons, integrate circuits, frames, plumbing fittings and other products marking.

Clear, beautiful and permanent marking.
