Rjsae 5381 021 Through Hole Rj45 Without Magnetics 8p8c - China

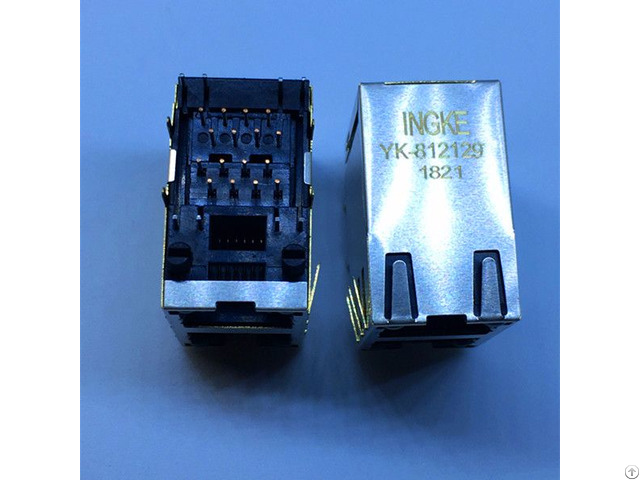

Ingke YK-812129 100% cross RJSAE-5381-021 Through Hole rj45 without magnetics 8P8C Part Number : RJSAE-5381-021

Made in China: YK-812129

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Number of Positions/Contacts: 8p8c (RJ45, Ethernet)

Packaging : Tray

Connector Type: Jack

Number of Ports : 2

Number of Rows : 2

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Yellow - Green

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Copper Alloy

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

RJSAE-5387-02 RJHSE-5388-08 RJSAE-5082-08

RJHSE-5088-04 RJHSE-5384-08 RJHSE-5085-08

RJSAE-5086-08 RJE05-188-1310 RJLSE-42381-01T

RJSSE5080 RJSAE-5381-02 MRJ548001 RJHSE-5081-04

RJHSE-7365 RJHSE-7364-02 RJHSE-7364-08

RJSAE-508A-02 RJSAE-5089-04 RJSAE-5380-04 RJSAE-5088-08 RJULE-42182-01 RJLSE-62361-01T RJFTVX2SA1N RJFTVX7SA1N RJFTVX6MN RJFTVX2SA2N03100BTX RJHSE-5380-02 RJCSE-5381-01 RJHSE-5080-04 RJHSE-5082-02 RJHSE-7360-04 RJE05-166-1310 RJSAE-5F82-02 RJSAE-5385-02 RJSAE-5382-04 RJHSE-5481 RJSAE-5382-02 RJLSE-62061-01T RJHSE-7060-04 RJSAE-5380-02 RJSAE-508B-08 RJE05-166-0310 RJHSE-7064-08 RJSAE-5087-02 RJHSE-5084-02

RJHSE-5086-02 RJSAE-5387-04 RJHSE-7064-04
