Shanghai Shangzhen Yzo Vibration Motor - China

1 - Product Introduction Vibration motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft, utilizing the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block, thus the exciting force is obtained.

It offer exciting vibration source for all kinds of vibrating machines such as vibrating screen, vibrating feeder, vibrating conveyor, vibrating flask shaker, vibrating crusher, vibrating molding machine, vibrating sand mixer, vibrating buffing machine, vibrating test-bed, etc.

in power plant, building materials, grain, coal, mine, metallurgy, chemical industry, light industry, casting, railway, port and other industries.

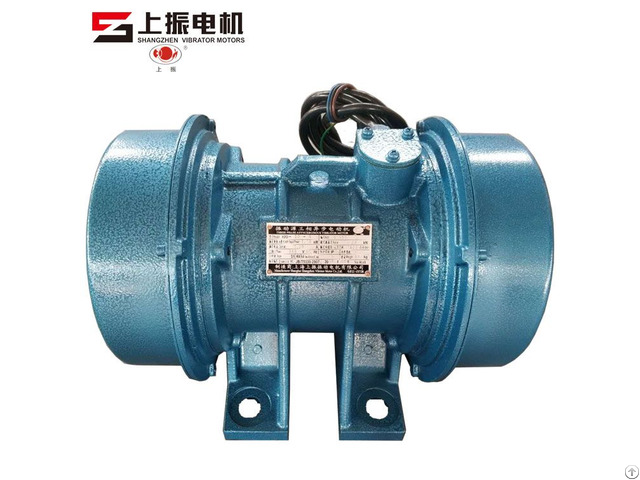

2 - Product Parameter(Specification) YZO-0.7-2 Two Poles Vibration Motor Specifications: Brand: (SHANGZHEN) Model: YZO-0.7-2 Type: Asynchronous Speed: 2900/3480RPM Close Type: Totally enclosed Phase: 3 Certificate: CCC, CE, ISO9001 Power: 0.065KW; 220, 240, 380, 400, 460V, OEM Original Place: Shanghai Efficient: E2 Frequency: 50/60HZ Protect class: IP54, 55, 65, 66 Defined Current: 0.27A Defined voltage: 380V Insulted Grade: B/F Customize: YES Ambient temperature: <40℃, Altitude<1000m Working Model: S1 Mounting Bolt: M8*4 Weight: 6.8KG Dimensions: 220*150*162mm 3 - Product Feature And Application Features: 1 - Joint utilization of motors can adopt the synchronization of complete and different technological requirements.

2 - The exciting force direction can be changed according to the installation of vibration motor.

3 - Exciting force can be adjusted continuously by changing the angle of the eccentric block 4 - Fully enclosed structure, dust-proof and water-proof, it can work under high requirement environment.

5 - Large vibration force, light body weight, small volume, low mechanical noise, stable vibrating frequency.

6 - Vibration frequency and amplitude can be customized according to different uses.

7 - Complete ranges of specification to meet the needs of various types of vibration machinery.

Applications: YZO electric vibrators can be widely used in mining, metallurgy, iron and steel, coal, casting, petroleum, chemical industry, building materials, food and other industries.

It is applied to rotary vibrating screen, vibrating mixer and other mechanical equipment.

It is applied to mechanical equipment such as vibrating shakeout machine, vibrating screen and vibrating feeder.

It is suitable for dry screening and slurry filtration of powdery and granular materials.

It is widely used in food, refractory, graphite, ceramic, quartz and other products.

Prefabricated vibration for construction of large concrete 4 - Production Details image001 5 - Product Qualification Being an ISO 9001: 2000 certified company, we have been continually working to live up to our reputation in the industry through stringent quality checking methods.

Abiding by international standards and regular up gradation of quality standards, we ensure that none of our products leaves our premises unchecked.

We rest our credentials on our ability to set up new milestones of technology and success with every consignment.

6 - FAQ: Q: How Do You Ensure The Quality Of Your Products? A: Our vibrator motors are durable.

This is also the feature of the label impression of SHANGZHEN for most of our customers at home or abroad.

However, we do recognize that there do have small amount of the product which may got faulty or damaged for different reasons.

Q: How Does Your After-Sale Service Work If The Product Got Damaged? A: In the free warranty time 12 months, our general after-sale service is changing the damaged parts for the customer.

We also can offer free repair service, you can send it back.

Q: Can I Mix Different Power In One Container? A: Yes, Different models can be mixed up in one container, even one order.

Q: What Is The Payment Term? A: 50% T/T in advance, 50% before shipment, L/C at sight.

Q: Do You Offer OEM Service? A: Yes.

We accept OEM service.

Q: Can I Get Some Samples? A: Yes, Sample order is available for quality check and market test .

But you need to pay for it.

Q: What’s Delivery Time? A: It usually takes about 3-5 working days for products with stock, small order need about 10-15 days, for big order, it will take more than one month.
