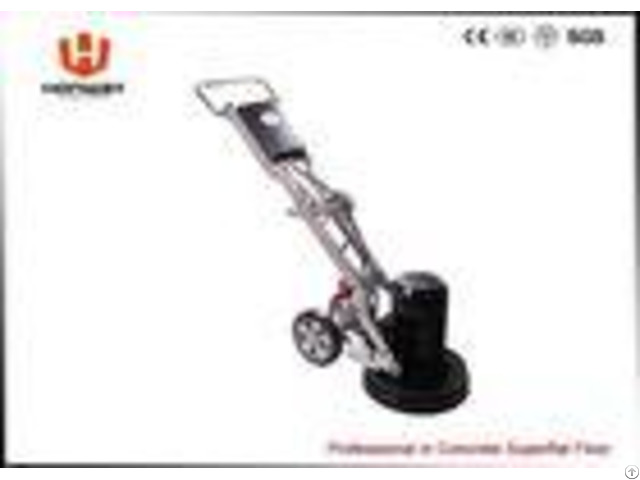

Single Grinding Plate Walk Behind Concrete Floor Grinder Machine 50 60hz Hw G2 - China

concrete floor grinder HW-G2 aluminum 400mm grinding width, 5.5hp, 380V; Single grinding plate increase grinding performance; Dust-free operation thanks to floating cover; Solid machine frame reduce vibration; Easy for transportation and set-up; Single head floor grinder, with 5.5hp motor HW-G2 is a single head grinder with the high motor rate, for 380v, three phrase; It is usually used for coarse grinding instead of the gear or belt driven floor grinding machines, as th latter is too heavy for it sometimes; in case that the gear or belt driven floor grinder is hit by the rebar underneath the floor, (which happens very often), HW-G2 is good choice for it; even it is hit, the maintenance is much easier than the big floor grinding machine; it is a perfect floor preparation machine for removing floor coverings, floor coatings, trowel marks and faults in the concrete floor; it can be folded which is convenient for transportation and storage; Product Details: Triangle structure It makes sure the balance of bottom plate, so the grinding would be very stable and much less vibrate.

Compacted machine Very easy to fold it, with 3 seconds, and can be placed in car trunk.

Encapsulated wheels Aluminum alloy wheels and PU, one wheel affords 130kg, shock absorbing, wear resisting.

Strong Stamping part The stamping part is steel tube, more solid than steel plate.

Schneider electric Schneider electric and Delixi buttons assure the electrical safety.

Annular handle Annular handle, can be adjusted with the different angle.

Product Details Parameter - - - - Model | HW-G2 | Voltage: | 380v, three phrase | Power output | 4KW, 5.5HP | Frequency: | 50/60HZ | Current: | 7.6A | Grinding Wldth: | 400mm/15.7" | Grinding Pressure: | 69KG/152lbs | Additlonal Welght: | N/A | Dast Port: | 50 | Motor Speed: | 1400rmp | Dianond Pad Holder: | 6/8Pieces | L*W*H: | 760*420*1200 | Net Weight: | 95KG/205lbs | - - - - The floor after G2 grinds Product Application: Packing Details About US HONWAY has developed as a professional manufacturer and trader in China for floor preparation machines since 2006; the main product line is floor grinding & polishing machine, floor scarifying & milling machine, floor diamond pad and floor tungsten carbide cutters; HONWAY not only supply the products on floor preparation, but also devote herself to the technology innovation and product research.

HONWAY staff has a common goal-provide a comprehensive and environment friendly floor preparation solutions for floor contractors; HONWAY has established the business relations with clients in North America, Australia, Europe, and so on; every year the distributors and floor contractors come to HONWAY and join HONWAY family; Our factory Delivery For sea shipping, please provide the name of seaport; shipping time is about 15-40 days; Goods needs to be collected in seaport; it is slow, but most economic transportaion.

For air shipping, please provide the name of airport; shipping time is about 4-5 days after aboarding.

Goods needs to be collected in airport; it is quick, but expensive; For Express like DHL, TNT, FEDEX, please provide the door address; Shipping time is about 3-7 days after Express company get the goods; goods arrives at door, no need for collect.

it is most expensive, but quickest and reach door directly.

Payment Certification It is certifcated by NB(Notify Party) of European Union.

NB No.

is 1282 - CE certification No.

is 1N160511 - CHMUS09 FAQs Q: What voltage the floor grinder HW-G2? A: It is only for 380v, 50/60hz.

Q: How HW-G2 is driven? A: HW-G2 is driven by the motor; Q: How about the floating cover of HW-G2? A: The floating cover follow floor up and down, preventing dust from entering work site.

Q: If the machine vibrates when it works? A: HW-G1 has a chassis which is made of triangle structure.

It is more stable and less anti-vibrate.

Besides, the machine frame is made of steel tubes, not steel plate, so it could support machine more and decrease vibration.

Q: How about the electrical elements of HW-G2? A: The electrical elements are Schneider relay and contactor, world brand.

Honway pays attention to the electrical safety, so all the eletrical connections and details are greatly assured.

Q: If HW-G1 could be attached to vacuum? A: Yes, it can; the diameter of port is 50mm, common criteria.
