Smart Wear High Frequency Crystal Oscillator 32 000mhz 45 Percent 85 Percent Humidity - China

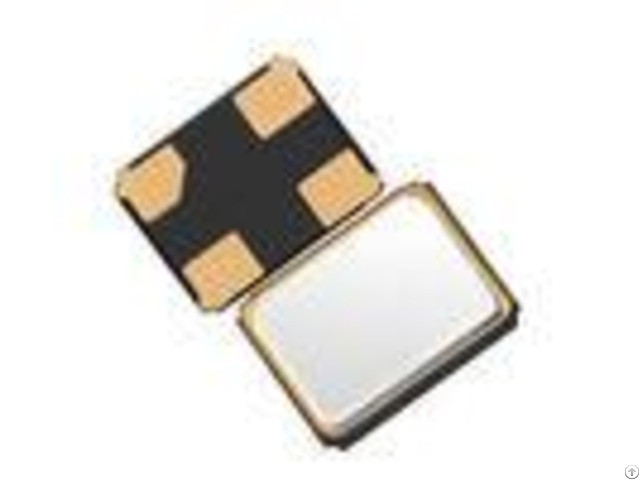

High Frequency Crystal Oscillator SMD 2520 Smart Wear Crystal Oscillator 32.000MHZ 8PF-20PF 10PPM 3, product application Crystal oscillator can be widely used in MP3 recorder, air conditioning, DVD, toys, digital products, intelligent wear and other fields.

product features The crystal is usually matched with the PLL circuit, the clock frequency to provide system required.

If different subsystems need different frequency clock signal can be used in different phase locked loop is connected with the same crystal to provide.

Standard Environmental Condition: Environmental Temperature: 15~35 Humidity: 45%~85% Atmospheric pressure: 86~106KPa Operating Temperature Range: -20~70 Crystal Frequency & Resistance will be tested under the following conditions, Unless extra requirments: standard temperature(252) after heat balance.

Storage Temperature Range: -40~+85 Mechanical test: The quartz crystal unit shall be subjected to normal atmospheric conditions for 1hr before being tested.

Dropping Test: The Units are measured for its frequency and resistance in accordance with Table1 & without mechanical damage, after allowing the crystal to fall freely.

From 75 cm of height 3 times on the firmed wood.

Product specification - - - - Type | 2520 | Frequency Range(MHZ) | 32.000MHZ | Frequency Tolerance(at25) | 10PPm, 5PPm at25+/-2 | Frequency Stability vs.

Temp(FL-T) | 10PPm, 20PPm, 30PPm | Operating Temperature range | -20~+70 -40~+85 | Storage Temperature range | -45~+80 | Temperature Characteristics | 10PPm 20PPm | Load Capacitance | 8 to 20 Pf or Serles | Aging | 3 PPm/year | Insulation Resistance | 500M(DC100V15V) | - - - - product advantage The new Tianyuan in R & D, design, manufacturing, marketing and service as a whole, have a hundred grade purification workshop.

The international advanced automated production lines, special test equipment, the latest technology and professional and technical personnel; has been preparing for the new Tianyuan own industrial park, to further expand the research and production of the higher requirements of the product.

FAQ Packing 3000pcs/tape.

Samples and technical support can be provided free of charge.

Dimension Refluence examination Frequency change: 5ppm
