Special Casing Withstand Torque Preloaded Piezo Actuators Displacement To 95um - China
price: contact company for price
This preloaded piezo actuator with anti-torque design can effectively eliminate a certain amount of torsion in the process of mounting or others.
Characteristics
• Withstand torque • Max displacement to 95μm • Blocking force 1200N • Sub-millimeter response time Anti-Torque Design
Anti-torque preloaded piezo actuator is compact and easy to integrate.
Its design optimizes its performance of load capacity, travel range, dynamics and overall dimension.
Technical Data

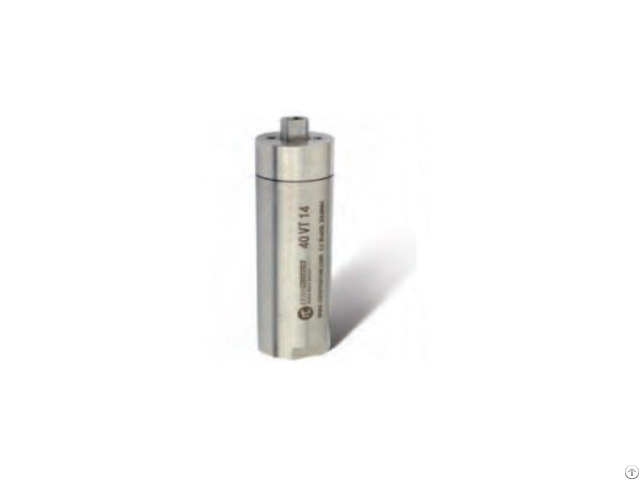

Type: PSt150/7/40 VT14
Stroke* [μm]±10%: 38
Stiffness [N/μm]±20%: 25
Push/pull force [N]: 1200/200
El.
capacitance [μF]±20%: 3.6
Resonant frequency [kHz]±20%: 20
Length L [mm]±0.3: 46.4 You can contact us for other specifications and models.
Company Contact:
- Posted By: CoreMorrow Ltd.
- Phone: 0451-86268790
- Address: 1F, Building I2, No.191 Xuefu Road, Nangang District, Harbin,China, Harbin , China , China
- Email:
- Website: http://www.coremorrow.com/en/
Published date: February 28, 2024
- Business Description: CoreMorrow Ltd. focuses on research,development, production and sales of nanoscale precision positioning products, mainly in the service of high-end precision equipment manufacturers.
After nearly 20 years of rapid development, our market has covered all well-known colleges and universities, research institutes, and high precision equipment manufacturers, and exported to Europe, America, Canada, Singapore, Japan, Korea and other countries.
We have established partnerships with a number of high-tech enterprises, state key laboratory, has become Chinese most professional precision positioning products manufacturer.
