The Mas6181 Am Receiver Chip - China

price: 10.00 Dollar US$

The Mas6181 Am Receiver Chip

Products Photos Catalog Mas6181 Receiver Chip Photos Catalog

DESCRIPTION

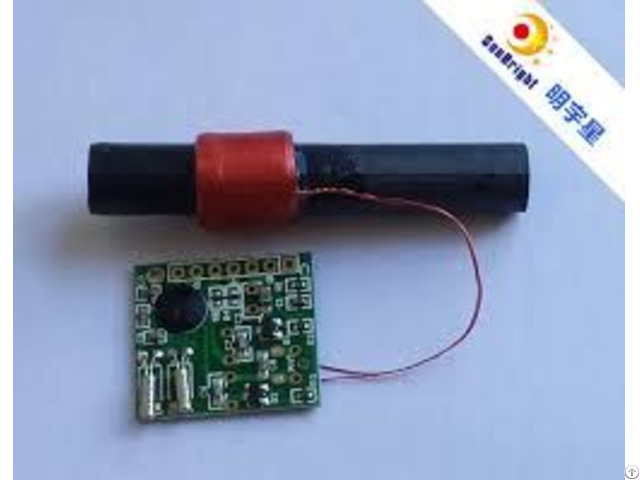

The MAS6181 AM-Receiver chip is a highly sensitive, simple to use AM receiver specially intended toreceive time signals in the frequency range from 40kHz to 100 kHz.

Only a few external components arerequired for time signal receiving.

The circuit haspreamplifier, wide range automatic gain control, demodulator and output comparator built in.

Theoutput signal can be processed directly by anadditional digital circuitry to extract the data from thereceived signal.

The control for AGC (automatic gain control) can be used to switch AGC on or off if necessary.

MAS6181 supports up to two frequency band operation by switching between two crystal filters and an additional antenna tuning capacitor.

MAS6181 has differential input and two internal compensation capacitor options for compensating shunt capacitances of different crystals (See ordering information on page 13).

FEATURES

Dual Band Receiver IC

Highly Sensitive AM Receiver, 0.4 μ

Wide Supply Voltage Range from 1.1 V to 3.6 V

Very Low Power Consumption

Power Down Control‧Fast Startup

Only a Few External Components Necessary

Control for AGC On

Wide Frequency Range from 40 kHz to 100 kHz

High Selectivity by Quartz Crystal Filter

Differential Input APPLICATIONS Multi Band Time Signal Receiver WWVB (USA), ‧ JJY (Japan), DCF77 (Germany), MSF (UK), HBG typ.

RMS (Switzerland) and BPC (China)


Company Contact:


  • Phone: 15973310720

  • Address: Flat 08,4/F Shing Yip Ind Bldg,19-21 Shing Yip Street Kwun Tongkowloon Hong Kong., hongkong , China

  • Email: Email


Published date: June 24, 2017

  • Business Description: Kynix Semiconductor HongKong Limited was founded in 2008, specializing in electronic components distribution business.

    We adhere to honesty and ethics as our business philosophy, and have gradually established an excellent reputation and credibility in our international business.

    With the accurate quotation, excellent credit, reasonable price, reliable quality, fast delivery, authentic service, we have won the praise of majority of customers.
