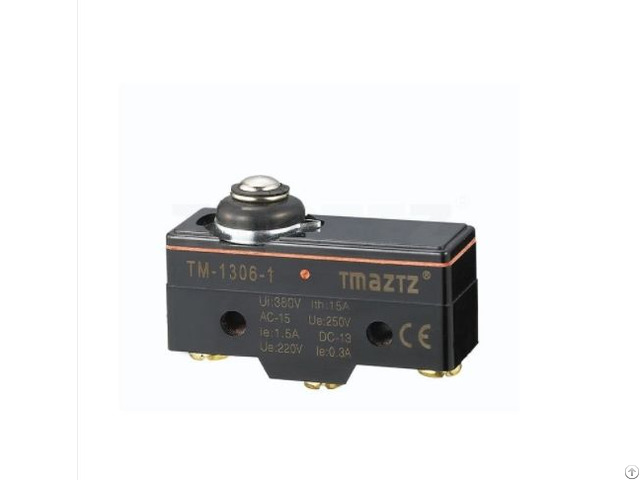

TM-1306-1 Waterproof Micro Switch

Micro Switch Waterproof Introduction

Waterproof micro switch is a kind of waterproof switch with tiny contact interval and quick-action mechanism, contact structure of switching action with specified stroke and specified force, covered with enclosure, and its external drive lever.

Features of the waterproof micro switches

This micro switch has a waterproof rating of IP67, which is a high waterproof performance, and the switch body is miniature in size, light in weight, good in feel and long in life.

Besides, there are various choices of button shapes and heights (custom micro switch can be made according to customers' requirements), and it is easy to install.

Application of micro switch waterproof

Micro switch waterproof is widely used in various cold, wet, dusty and various harsh environments.

Such as automobile, spraying equipment, etc.

Technical Ratings

Rated voltage Noninductive Load (A) Inductive Load (A) Inrush Current(A) Resistance Load Lamp Load Inductive Load (A) Motor Load NC NO NC NO NC NO NC NO NC NO

125VAC 15 3 1.5 15 5 2.5 30max.

15max.

250VAC 15 2.5 1.25 15 3 1.5 500VAC 3 1.5 0.75 2.5 1.5 0.75 8VDC 15 3 1.5 15 5 2.5 14VDC 15 3 1.5 10 5 2.5 30VDC 6(2) 3 1.5 5 5 2.5 125VDC 0.4 0.4 0.4 0.05 0.05 0.05 250VDC 0.2 0.2 0.2 0.03 0.03 0.03 We can make different limit switches and microswitches according to your needs, contact us! Characteristics

Operation speed 0.01mm-1m/sec

Operating frequency Mechanical: 240 operations/min.

Electical: 20 operations/min.

Contact resistance 15mΩ max.

(initial value)

Insulation resistance 100mΩ min.

(at 500VDC)

Dielectric strength 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between current-carrying and non- current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground

Vibration 10-55Hz, 1.5mm double amplitude

Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃

Humidity General purpose type: 85% RH max., Sealed type: 95% RH max.

Weight About 22 to 58g Operating Characteristics

Operating Characteristics Model TM-1701 TM-1702 TM-1703 TM-1704 TM-1705 TM-1724 TM-1743

Operating force OF (Max) 0.69N 1.57N 1.27N 1.57N 58.8mN 58.8mN 1.67N

Release force RF (Min) 0.14N 0.27N 0.21N 0.41N 4.90mN 4.90mN 0.41N

Pre-travel PT (Max) 5.6mm 2mm 4mm 2.4mm 8.3mm 19.8mm 2.4mm

Over-travel OT (Min) 1.27mm 1mm 1.6mm 0.5mm 5.6mm 10mm 0.51mm

Movement differential MD (Max) 28.2mm 24.8mm 36.5mm 32.5mm 0.65mm 2mm 47.5mm

Operational position OP 19±0.8mm 19±0.8mm 30.2±0.8mm 30.2±0.4mm 19±1mm 19.8±1.6mm 41.3±0.8mm Operating Characteristics Model TM-1300 TM-1301 TM-1303 TM-1305 TM-1306 TM-1307 TM-1308/1309

Operating force OF(Max) 2.45~3.43N 1.38N 1.38N 2.45~3.43N 2.45~3.43N 2.45~3.43N 2.45~3.43N

Release force RF(Min) 1.12N 0.14N 0.14N 1.12N 1.12N 1.12N 1.12N

Pre-travel PT(Max) 0.4mm 1.6mm 1.6mm 0.4mm 0.4mm 0.4mm 0.4mm

Over-travel OT(Min) 0.13mm 1.3mm 1.3mm 1.6mm 1.6mm 5.5mm 3.58mm

Movement differential MD(Max) 0.05mm 20.6mm 31.8mm 0.05mm 0.05mm 0.05mm 0.05mm

Operational position OP 15.9±0.4mm 17.4±0.8mm 28.6±0.8mm 28.

±0.8mm 21.5±0.5(mm) 21.8+0.8(mm) 33.

±1mm(5)mm
