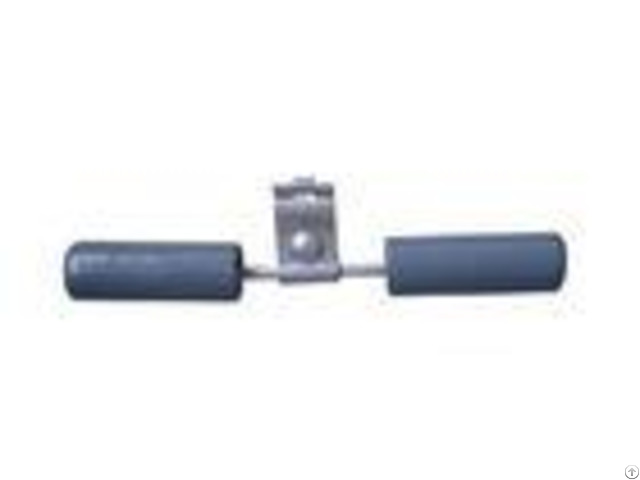

Transmission Line Hardware Fittings Type Ff Vibration Dampers Reliable Checkup - China
price: check with company for price
Aluminium Aloy Overhead Transmission Line Hardware Type FF Vibration Dampers Quick Details - - - - Place of Origin: | Guangdong, China (Mainland) | Model Number: | FF | Material: | Aluminum alloy | Application: | Overhead transmission line | Operation: | Easy | Certification: | ISO9001: 2003 | - - - - Packaging & Delivery Packaging Details : In wooden box Delivery Time: 3 months Description Vibration damper makes use of rotation & swing of the two-end hammer heads for generating friction damping force from the mutual slippage among the galvanized iron wire strands to consume the swinged energy.
It is adopted preformed rod structure in which the holding strength between the installation of vibration damper to preformed rods and the conductors evenly spread the distance from 30 to 60cm on the length area, effectively protecting the conductor by avoiding the stress concentration of the latter.
It is of good slippage & antivibration performance as well as superior installation of preformed rods guarantee sustainable, stable & reliable holding strength between the performed rods & the conductors while its high efficient construction will be good for the convenient & reliable checkup.
Its inertia & spiral elasticity can make the damping component generate relative displacement on the conductor swing, consuming vibration energy by effecting viscous damping phenomenon.
The more the conductor swings, the more vibration damper consumes energy.
Its installation shall take priority on its antinode; as its resonant frequency matches with the vibration frequency of conductor, the energy vibration damper consumes will be up to its maximum value.
Specification Vibration damper clamp is aluminum alloy, hammpers are grey iron, the other parts are hot-dip galvanized steel 1 - GB/T National Standard 2 - Type test before shipping 3 - certification: ISO9001: 2003 Technical Parameter
Company Contact:
- Phone: 86-20-82970993
- Address: Shihushan,Yonghe Village,Xintang Town,Zengcheng,Guagnzhou City,Guangdong Province,P.R.China-511356 , Guagnzhou , Guangdong , China
- Email:
Published date: March 12, 2018
- Business Description: Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China.
ACMCC is designed for double capacity of power transmission.
ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc.
