Tuv Solar Y Branch Mc4 Fuse Connector 30a 2 5 6mm2 1000vdc 1500vdc - China

price: 2.20 Dollar US$

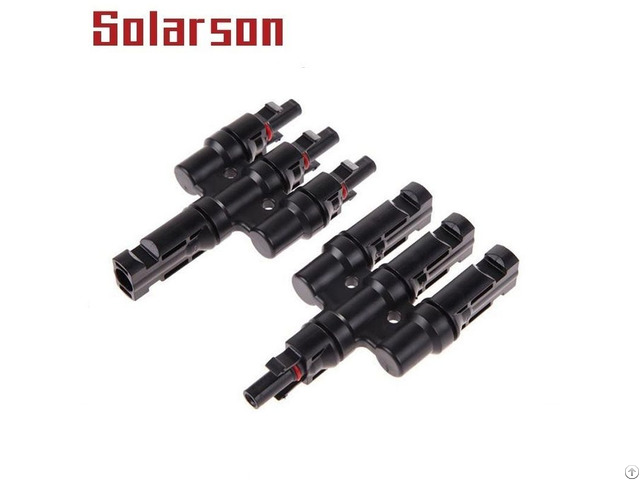

Tuv Solar Y Branch Mc4 Fuse Connector 30a 2 5 6mm2 1000vdc 1500vdc

Products Photos Catalog Tuv Solar Branch Mc4 Photos Catalog

Quick Details

Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

Solarson

Model Number:

MC4

Type:

Adapter

Application:

PV Energy System

Gender:

Male and Female

Rated current:

30A

Rated voltage:

1000VDC

Certificate:

TUV CE

Waterproof grade:

IP67

Insulation material:

PPO

Connecting metrial:

copper with tin plated Simple on-site processing.

Acomodates PV cable with different insulation diameters.

Mating safety provided bykeyed housings.

Multiple plugging and unplugging cycles .

High current carrying capacity.

TUV and UL approved.

Technical Data

Rated Current

30A(2.5-6mm2), 60A(10-16mm2)

Rated Voltage

1000VDC/1500VDC

Test Voltage

6000V(50Hz, 1min)

Overvoltage Type/Pollution Degree

CAT III /2

Contact Resistance Of Plug Connector

ImΩ

Contact Material

Copper, Tin-plated

Insulation Material

PPO

Degree Of Protection

IP2X/IP67

Flame Class

UL94-VO

Safety Class

II

Suitable Cable

OD 4.5-8.5(2.5-6.0mm2)

Insertion Force/Withdrawal Force

≤ 50N/≥ 50N

Connecting System

Crimp connection

Temperature Range

-40 °C ~ +125°C


Company Contact:


  • Phone: 13626533618

  • Address: Daidong Industrail Zone,Liushi, Yueqing , zhejiang , China

  • Email: Email


Published date: July 25, 2019

  • Business Description: Yueqing Aidun Electric Co.,Ltd was found by a experienced engineer team and excellent sales team ten years ago.

    The enterprise specializes in Design and manufacturing new energy products and low &high voltage products ,our main products is DC fuse ,DC Surge protector device DC circuit breaker ,MC4,solar cable and other low voltage and high voltage products our products used for solar photovoltaic system,power system,communication system,wind power generation and so on.

    Our brand is “Solarson”,our main purpose is supply more green new energy products ,Our company grows fast and now our company integrate design R&D advanced production equipment and professional management system.

    our products have got CE,CB,TUV,CCC,RoHS and other certificates.

    Excellent quality product with good price ,we have gain a lot customers in China ,Aidun Electrical also have rich experience of export,now our main market is European ,Southeast Asia,Middle East,,America and so on.
