Tz 8169 Cats Whisker Lever Limit Switch - China
price: contact company for price

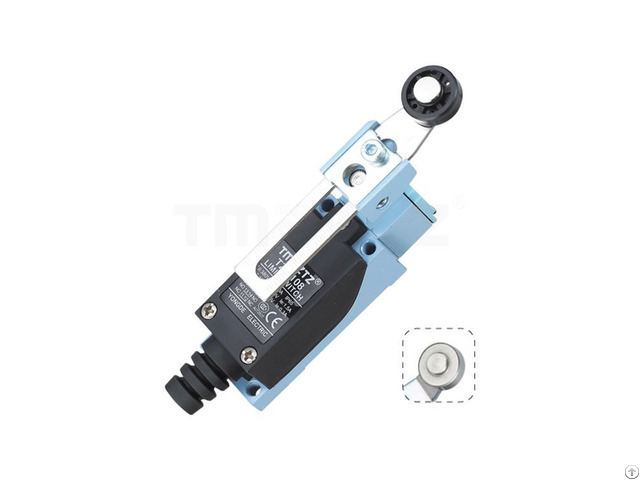

TZ-8169 cats whisker lever limit Switch
Whisker Limit Switch
TMAZTZ offer a wide range of whisker limit switches in different sizes.
If you have any questions please contact us and we will provide you with the right limit switch for you.
We have a perfect quality control system, and you can trust the quality of our products.
Data Ratings
Rated voltage Noninductive Load (A) Inductive Load (A) Resistance Load Lamp Load Inductive Load (A) Motor Load NC NO NC NO NC NO NC NO
125VAC 5 5 1.5 0.7 3 3 2 1
250VAC 5 5 1 0.5 3 3 1.5 0.8
8VDC 5 5 3 3 5 4 3 3
14VDC 5 5 3 3 4 4 3 3
30VDC 5 5 3 3 4 4 3 3
125VDC 0.4 0.4 250VDC 0.2 0.2 Inrush Current N.
C: below 24A, N.
O: below 12A NOTE:
1 - Inductive load has a power factor of 0.4 min.
(AC) and a time constant of 7 msec.
max.
(DC).
2 - Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
3 - Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.
Whisker limit switch characteristics
■ Double-circuit type of limit switch.
■ Compact new design approximately 1/3 the size of TMAZTZ vertical limit switches.
■ With strong zinc cast base, and reinforced plastics outer shell, High.
Structure preventing oil, water and pressure.
■ Structure enables the terminal section to be fully opened for easy wiring.
■ Degree of protection: IP65 Operation speed 0.5mm-50cm/sec
Operating frequency Electical: 30 operations/minute
Contact resistance 25mΩ max.
(initial value)
Insulation resistance 100MΩ min.
(below 500VDC)
Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature -5~+65℃ (With no icing)
Humidity <95% RH
Weight About 130 to 190g
Degree of protection IP65
Electrical Life Above 500000 Operating Characteristics
Operating Characteristics Model TZ-8104 TZ-8107 TZ-8108 TZ-8111 TZ-8112 TZ-8122 TZ-8166 TZ-8167 TZ-8168 TZ-8169
Operating force OF
(Max) 5.88N 5.88N 7.84N 9.8N 9.8N 9.8N 0.88N 0.88N 0.88N 0.88N
Release force RF
(Min) 0.49N 0.69N 0.49N 2.94N 2.94N 2.94N 一 一 一 一
Pre-travel PT
(Max) 20° 20° 20° 1.5mm 1.5mm 1.5mm 30mm 30mm 30mm 30mm
Over-travel OT
(Min) 75° 75° 75° 4mm 4mm 4mm 一 一 一 一
Movement differential MD
(Max) 10° 10° 10° 1.2mm 1.2mm 1.2mm 一 一 一 一
Total travel TT
(Min) 95° 95° 95° 5.5mm 5.5mm 5.5mm 一 一 一 一
Operational position OP 一 一 一 26±0.8mm 一 一 一 一
Company Contact:
- Posted By: Yueqing Yongde Electric Co., Ltd.
- Phone: 057762962298
- Address: Lingmen Village, Beibaixiang Town, Yueqing , Zhejiang , China
- Email:
- Website: https://www.chinalimitswitch.com/
Published date: October 20, 2022
- Business Description: TMAZTZ,founded in 1998, is a manufacturer focus on R&D and production of Industrial Control Switch, such as limit switches, micro switches, sealed switches, waterproof switches, toggle switches and foot switches.
We're an experienced company, starting in 1998, we are OEM&ODM company for many local electrical companies, some are Top 10 in China.
TMAZTZ aslo produce bakelite shell, stamping pieces and plastic accessories.
In local market, our switches are widely applied to machine tools, injection molding machines, automobile manufacture plants and space-parking systems.
We're aslo a young company, after 2011 we gradually built our brand TMAZTZ.
Based on the previous experience of switches producing, we've built a strict QC standard and an excellent working team.
Our switches have passed the certifications such as CCC, RoHs, TUV and CE step-by-step.
In 2014, we start to develop overseas market,and set up sales center in Spain, Malaysia, Argentina, Peru.
etc in last 6 years.
We sincerely invite you to promote the devegopment internationlization,toget her to witness the bright future!
