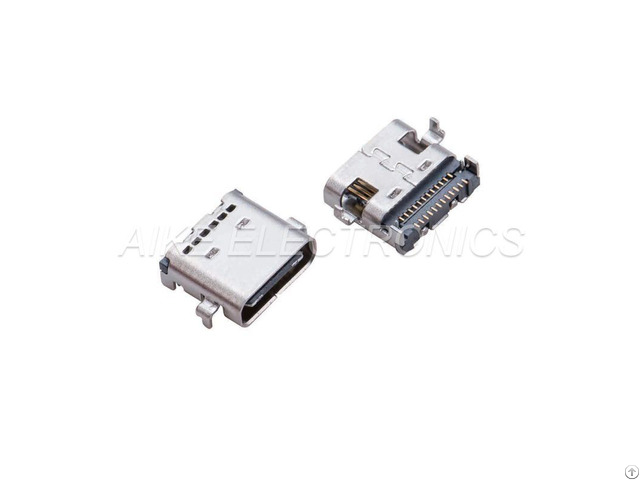

USB Type C 3.1, Receptable 24PIN, double Rows SMT Contacts, through holes legs, SINK PCB board Type

Connectors Type c Supplier

China Type c Connectors

Introduction：

With the continued success of the USB interface, there exists a need to adapt USB technology

to serve newer computing platforms and devices as they trend toward smaller, thinner and lighter form-factors.

Type c Conn is the connection which can be inserted into both sides, and other interfaces support USB standard charging, data transmission, display and output functions Type USB Type C 3.1, Receptable 24PIN, double Rows SMT Contacts, through holes legs, SINK PCB board Type.

Contact No.

24

Materials For housing can be, LCP, PA6T, PA9T and so on

For shell can be SPCC, Copper and so on.

Colour White or Black or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact, Au, Ni, and Tin Plating

Plating Thickness For Shell, 50U', 100U' or Higher

For Contact, 1U', 3U'5U'15U', 30U' or Higher

Both are depands on custoer request

Machenical Contact resistance: 40mΩ max for initial

10mΩ change after test.

measure at 20mv, 100mA.

Dielectric withstanding voltage: AC 100V(rms) Insulation resistance: 100MΩ min.

Contact current rating:

3A for Vbus pin;1.25A for Vconn and GND pin;

0.25A for all the other pin.

1.5 Voltage: 5 Vac (rms).

Electronical Mating force: 5~20N Unmating force: 8~20N Initial test, 6~20N After test

Application Mainboard, TV, Computer, Rejector, Game machine, smart home and Industrial etc.

Package Tray Package or Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts.

We are so able to produce other standard as per the clients' requirements.

Just let us know.
