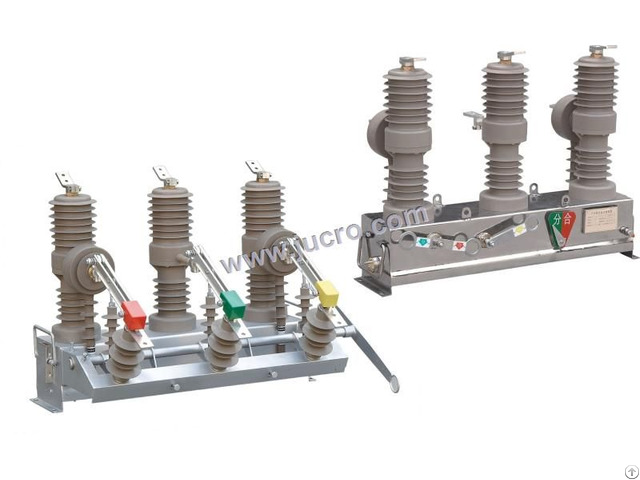

Vcb Vacuum Circuit Breaker Hvd32 - China
price: 800.00 Dollar US$
HVD32 ZW32 This vacuum circuit breaker VCB is three-phase AC 50Hz, rated voltage 12 kV outdoor high voltage switch equipment.
It is mainly used to opening(closing) load current, overload current and short-circuit current.
It is suitable to protect or control the city or village electrical power distribution system.
Main technical parameter Rated voltage: 12 kv 1 minute rated power frequency withstand voltage: Phase to Phase, to Ground 42 kv / Fracture 48 kv Rated current: 630A / 1250A Rated short circuit breaking current: 12.5KA, 16KA, 20KA / 25KA Rated short-circuit current (peak): 31.5KA, 40KA, 50KA / 63KA Rated peak withstand current: 31.5KA, 40KA, 50KA / 63KA 4s rated short time withstand current: 12.5KA, 16KA, 20KA / 25KA Rated operating sequence: O-0.3s-CO-180s-CO(Electri c operation) Closing time: 30-60 ms Opening time: 20-40 ms Rated short circuit breaking current breaking times: 30 times Mechanical life: 10, 000 times Secondary circuit 1 minute power frequency withstand voltage: 2000 v Energy storage motor rated power: 40 w Energy storage motor rated voltage V: DC220/110 Rated closing operation voltage v: DC220/110, AC220/110 Rated switching operation voltage v: DC220/110, AC220/110 Electric energy storage time: ≤8 s
Company Contact:
- Posted By: hubei jucro electric co.,ltd
- Phone: +867174209218
- Address: 4# Road, Xiannv industrial zone, Zhijiang, Hubei 443200, China, zhijiang , yichang , China
- Email:
- Website: https://www.jucro.com
Published date: July 22, 2018
- Business Description: jucro electric specialized in manufacturing of vacuum interrupter, vacuum contactor, vaccum circuit breaker and vaccum load breaking switch.
we are focus on design , development and production .
meanwhile , we have our own professional technical elite team focusing on designing , developing , production and service .
