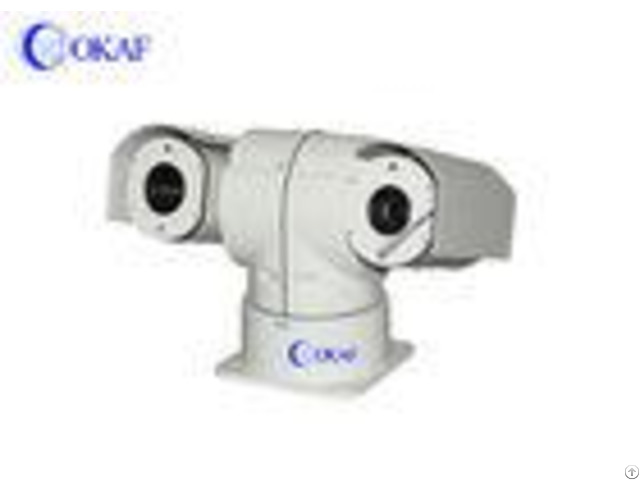

Wireless Outdoor Thermal Ptz Camera 20x Optical Zoom Dual Sensor Security Detection - China

Dual Sensor Thermal Imaging Camera Outdoor Security Detection Observation Specifications: 1 - Integrated infrared thermal imaging, visible light camera, PTZ control system to achieve round-the-clock video monitoring 2 - Adopt temperature measurement thermal imaging technology, not limited by the light source, imaging is clear 3 - 2MP starlight low illumination colored camera to achieve detailed observation 4 - Support standard ONVIF protocol, compatible with standard ONVIF DVR 5 - 3D positioning function, make it easier to use 6 - 360continuously rotation, no blind spots when it looks up to 180; fastest speed: 120/s 7 - Defogging module solve fogging problem 8 - Voltage regulator module keeps PTZ stable Thermal imaging: 1 - Resolution: 384*288 2 - AGC, 3D DNR, DDE image detail enhancement 3 - Black/white/iron red/rainbow etc 14 pseudo color adjustable 4 - Accurate temperature measurement, cross positioning the highest temperature 5 - Support 1 line temperature measurement, 10 frame temperature measurement and 10 point temperature measurement 6 - Temperature range: -40-550 (2) 7 - Temperature anomal alarm, support 2CH alarm input & ouput 8 - Standard Onvif, support SDK Visible camera: 1 - 2MP HD 1920*1080P 2 - 20X optical zoom, optional 3 - Standard Onvif, H.

264 & H.

265 decode Specifications: - - - - Items Model | OK-CT50RI-20IP | sensor performance | Sensor Element | Uncooled focal plane type slight fever | pixel | 384288 | image space-between | 25 um | NETD | 100mK@f/1, 300K | Field Frequency | 50HZ | wavelength coverage | 8-14um | Lens | focal length | 50mm | field angle | 11*8.2 | Avoid focusing range | 23m~ | lens type | Fixed focus without heating up | Thermal operation | luminance/gain adjustment | Manual Brightness /GainAuto Brightness/Manual Gain Auto Brightness/Gain | | Black and thermal/ white thermal/ | Digital Zoom | 2x | Calibration to Tag | Auto / Manual | Noise reduction features | yes | Image enhancement | yes | Auto Brightness/Gain setting | 2 fixed model, 8 User-defined Settings mode.

| Gray alarm | instrument built-in, 6 grade of recovery | power system | External source | 10-15V DC | Power Consumption | 2W(normal working temperature 25C) | enviromental parameter | Working temperature | -20-+50 | Storage temperature | -40-+65 | Size | Please check the picture of SIZE | | Power interface | YES | video output | PAL | Alarm | switching signal(used to Gray alarm) | Serial port | RS485(PELCO-D/P) | | Human(detect) | 1650m | Vehicle(detect) | 2300m | Human(recognize) | 550m | vehicle(recognize) | 750m | PTZ function | Preset pan speed | 100/S | Preset tilt speed | 80/S | Manual pan speed | 060/S | Manual tilt speed | 040/S | Pan range | 360 rotating | Tilt range | -90+90 | Preset positions | 256 positions, 6 tracking | Control Method | RS485, built-in16 ways, baud rate: 2400Bps~19200Bps optional | Relative humidity | <90% | IP rating | IP66 | Working environment | -35C+55C | Power supply | DC10.8V-DC18V | Shock request | 4G | wiper function | Support | Installation | Various installation options are available depending on the application environment | weight | 6kg | Network parameter | video compression | H.

264/H.

265 | audio compression | G.

722.1, G.

711-alaw, G.

711-ulaw, MP2L2, G.

726 | Compress the output bit rate | 32Kbps16Mbps | standard | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional), GB28181 | interface protocol | ONVIF/PSIA/CGI/ISAPI | communication protocol | PelcoD-P | intelligent alarm | Motion detection, occlusion alarm, memory full, memory error | Preview video at the same time | More than 10 channel | dual-stream | 960P+D1 | user right | Up to 32 users, 3 levels: Administrators, operators and ordinary users can only browse | - - - -
