Ykgu 4309nl 100 Percent Cross J0g 0001nl Rj45 Modular Jack Connectors - China

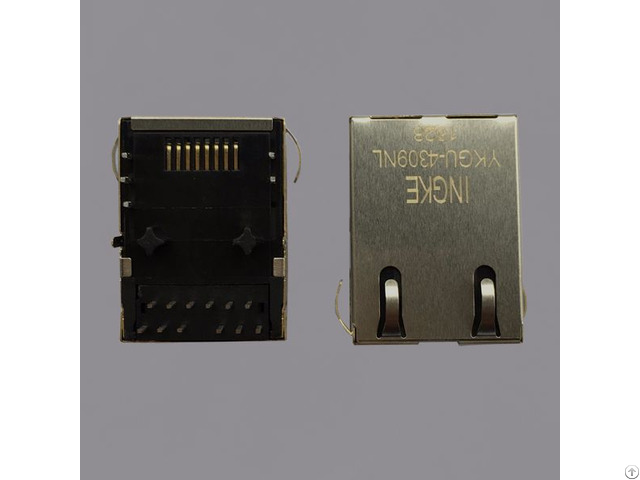

Ingke YKGU-4309NL 100% cross J0G-0001NL RJ45 Modular Jack Connectors Pulse Part Number : J0G-0001NL

Made in China: YKGU-4309NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green/Orange-Yellow

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL JC0-0133NL J0B-3448NL J00-0065 J0011D21 J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016 JK0-0017 JG0-0023 JG0-0025 JC0-0031 JC0-0032 JC0-0033 JW0-0009 J00-0025 J00-0045 J00-0046 J00-0061 J00-0062 J00-0064 J0006D01B J0011D01 J0011D21E J0012D21 J0024D21 J0024D21B J0026D21FNL JP006821UNL J0026D01ENL JXR0-0015NLT JXR1-0001NL JXR1-0001NLT JXR1-0005NLT JXR0-0011NLT JXR0-0001NLT JXR0-0005NLT

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
