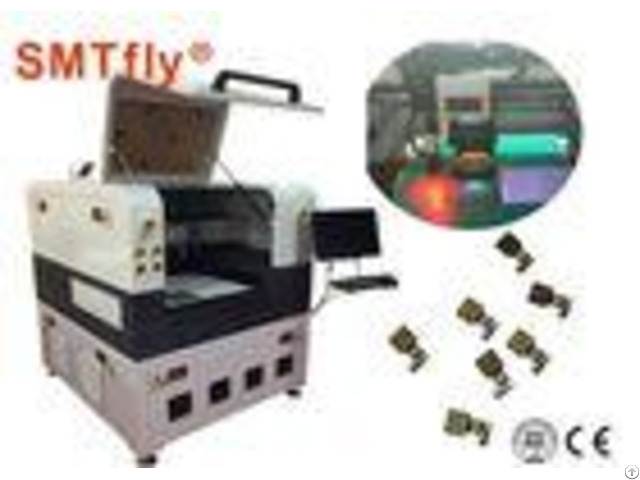

10w Uv Laser Cutting Machine For Pcb Depaneling Equipment Customizable Working Field - China

10W UV Laser Cutting Machine for Pcb Depaneling Equipment, SMTfly-5LDescription: PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years.

Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods.

However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts.

Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage.

This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods.

Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry.

A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

Custom PCB UV Laser Cutting Machine for Printed Circuit Board FPCSpecification: - - - - Laser | Q-Switched diode-pumped all solid-state UV laser | Laser Wavelength | 355nm | Laser Power | 10W/12W/15W/17W@30KHz | Positioning Precision of Worktable of Linear Motor | 2m | Repetition Precision of Worktable of Linear Motor | 1m | Effective Working Field | 460mmX460mm(Customizable) | Laser Scanning Speed | 2500mm/s (max) | Galvanometer Working Field Per One Process | 40mm40mm | - - - - PCB UV Laser Cutting Machine-Laser PCB Depaneling MachineFeatures: # # More quick and easy, shorten the delivery time; # High quality no distortion surface clean& uniformity; # Gathering the CNC tech laser tech software techHigh accuracy High speed.

Advantages of Laser PCB depaneling/singulation: # No mechanical stress on substrates or circuits # No tooling cost or consumables.

# Versatility ability to change applications by simply changing settings # Fiducial Recognition more precise and clean cut # Optical Recognition before PCB depaneling/singulation process begins.

# Ability to depanel virtually any substrate.

(Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc) # Extraordinary cut quality holding tolerances as small as < 50 microns.

# No design limitation ability to cut virtually and size PCB board including complex contours and multidimensional boards 10W UV Laser Cutting Machine for Pcb Depaneling Equipment, SMTfly-5LSample: PCB Separator Machine-Principle of PCB Laser Cutting Machine: Our Service: 1 - We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

2 - We can also customize the products to fulfill different requirements.

3 - We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.

4 - We keep a lot of stock for regular products and we can support small orders.

Usually, our lead time is just 3 days.

5 - Credibility: We are the 6th year Alibaba Gold Supplier.

Our customers are located all over the world.

6 - Gratitude: We cherish and feel grateful to every customer for the business you give us.

We are your reliable partner and will return to you with good products and good support.

7 - Professional: We have been in this business for more than 10 years.

We have a strong professional team with various experiences.

8 - We keep doing new product development.

Our goal is to enhance our competitive capacity constantly.

9 - Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.

10 - Price: we always offer competitive prices and help our customers to cost down.

11 - Quality: we do 100% inspection before the shipment.

Company Contact:

• Posted By: Shenzhen SMTfly Electronic Equipment Manufactory Ltd

• Phone: 86-755-33581320

• Address: Building 2, Gang Hua Xing Industrial Park, Chongqing Road, Fuyong Town, Shenzhen, China 518103, Shenzhen , guangdong , China

• Email:

• Website: https://www.laserpcbdepanelingmachine.com

• Business Description: Established in 2004, SMTfly Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design , development and production of laser pcb depaneling machine, pcb separator, pcb cutting machine , pcb, fpc robotic soldering machine.
