110kv Double Circuits Angle Electrical Power Pole For Distribution Line - China

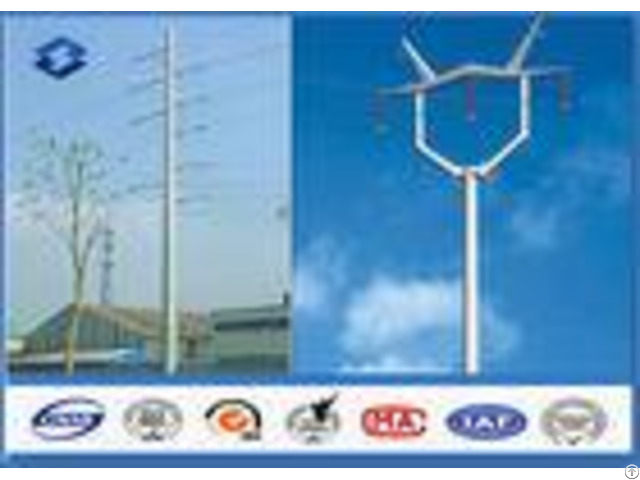

110KV Double Circuits Angle Galvanized Electrical Power Steel Pole for Transmission Line Specification - - - -

Products | # 110KV Double Circuits Angle Galvanized Electrical Power Steel Pole for Transmission Line | Type | # Suspension Pole, Tensile Pole, Strain Pole, Angle Pole, etc | Voltage Grade | # 110 KV # Others Available.

# 10~500KV (10KV, 13.8KV, 33KV, 35KV, 66KV, 110KV, 132KV, 220KV, 230KV, 330KV, 500KV or Others ) | Height | # 7M .

| Shape | # Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).

| Material | # Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.

# Min Yield Stree 345 Mpa # Tensile Strength 470 Mpa ~ 630 Mpa | Wall thickness | # 3 ~ 20mm | Once Forming | # 14m Once forming without joint # 40GP, 40HQ container Length is 12m, so the poles will be or more than 2 segments if longer than 12m.

| Welding | # Welding complies with AWS D1.1 standard.

# CO2 welding or submerged arc auto methods # No fissure, scar, overlap, layer or other defects # Internal and external welding # Ensure 100% complete penetration welds.

| Joint | # Joint with insert mode, flange mode.

| Base plate | # Base plate is square/round/Polygon with slotted holes for anchor bolts installation.

| Galvanization | # Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 - | Warrantly | # More than 25 years, it is according to installing environment | - - - - Description: 110KV Double Circuits Angle Galvanized Electrical Power Steel Pole for Transmission Line widely used in electrical power transmission and distribution industry.

In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system.

Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.

Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section.

To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.

The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years

As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

Features: 1 - We can supply the product based on client's required drawing, but also can supply the design for any kinds of electric poles for customers to select.

2 - Matercial : hot rolled coil from Q235 to Q460, ASTM573 GR65, GR50, SS400, SS490, ST52-3 3 - Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4 - Packing: Plastic bulble, Mat &Straw Bale or following client required 5 - Length : within 14meters once forming( single section) 6 - Thickness: from 2.5mm to 22mm 7 - Shape: polygonal(6-side, 8side, 12-side, 16side) round tapered.

8 - Easy install and maintenance.

Terms and Conditions 1 - Price Term: EXW, FOB, CFR or CIF.

EXW: Poles Cost FOB : Pole Cost + Land Transportation + Fee on Port CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2 - MOQ: One 40FT Container.

3 - Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.

Other payment way can be negotiated.

4 - Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

5 - Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.

Company Contact:

• Posted By: Jiangsu Bosheng Steel Poles Co.,limited

• Phone: 86-510-80326616

• Address: Heqiao Industrial Zone, Yixing City, Jiangsu Province. China., Yixing , Jiangsu , China

• Email:

• Website: https://www.metalutilitypole.com

• Business Description: Jiangsu Bosheng Steel Poles Co., Ltd founded in 2007, Which is the specialized manufacturer of various steel poles including street lighting pole, electric power pole, traffic signal pole, flag pole, wind power pole and microwave communication tower, etc.
