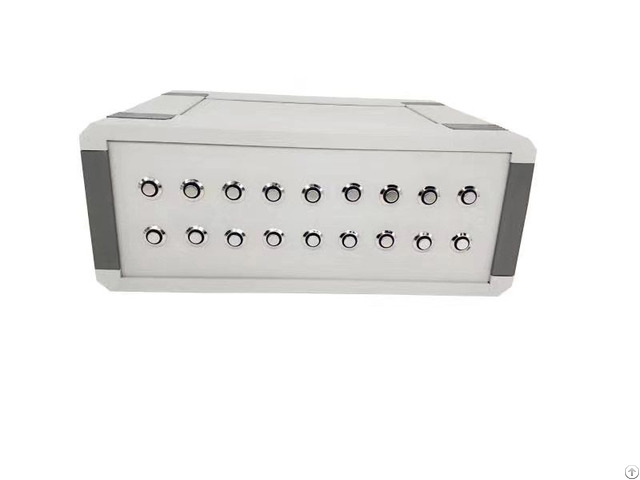

1x18 Multi Channel Optical Switch - China
price: 350.00 Dollar US$
Features (1)with small insertion loss, fast switching speed and other characteristics.
(2)the internal circuit of the optical switch is self-detecting, and the fault alarm informs.
(3) the chassis is instrumentation aluminum profile shell, ideal for laboratory.
(4) serial port RS-232 communication, control switching through the command set.
(5) each road independent key control switching, LED key light display light road status.
Performance Parameter Parameter Values
Model XH-FSW-1X18-T
Wavelength Range 1260~1650nm
wavelength 1310/1550nm
Insertion Loss ≤ 1.2 dB
Repeatability ≤ 0.02 dB
Return Loss ≥ 50 dB
Crosstalk ≥ 70 dB
WDL ≤ 0.25 dB
PDL ≤ 0.05 dB
Fiber Type SM(9/125um)
Connector FC\PC or FC/APC
Monitoring port Pushbuttons, RS-232
Operating power AC: 100~240V
Operating Temperature -10 ~ +60ºC
Operating Temperature -40 ºC ~ +85 ºC
Enclosure Type 267(W)x220(L)x105(H)
Company Contact:
- Phone: 8607713121055
- Address: Room 3-3, No. 17 MingYang Fifth Road, MingYang Industrial Area, Wuxu Town, Nanning, China
- Email:
- Website: https://www.xhphotoelectric.com
Published date: January 28, 2023
- Business Description: Optical Switch, OLP, optical-power signal acquisition equipment, VOA, stable optical sources, wavelength division multiplexers, circulators, optical fiber collimators, optical fiber jumpers, optical cable monitoring systems, distributed optical fiber temperature measurement systems (DTS),FBG sensors optical fiber grating sensors and other optical communication products.
