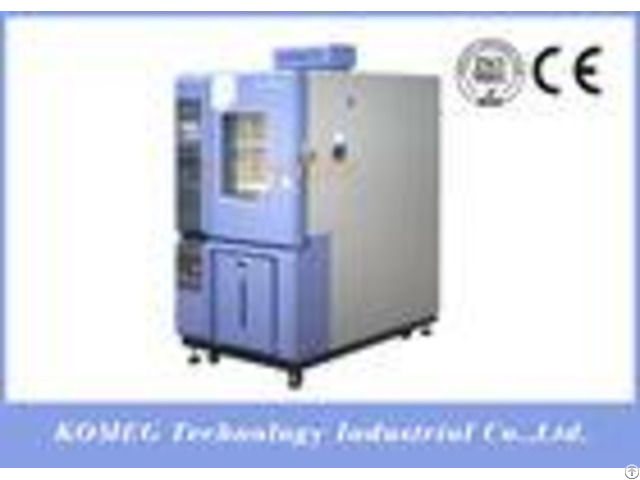

225L Simulation Environmental Temperature Humidity Test Machine Product Description simulation environmental temperature humidity test machine is designed for testing the capability of environmental stability, such as heat and cold endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Features A.

Reliability testing based on current test standards between -40 C to 150 C B.

The ideal simulation machine for all heat and cold testing in the traditional temperature range -40 C and 150 C.

C.

Forced ventilation loops design, balance temperature & humidity control system (BTHC).

D.

Custom-made machine are available and optional accessories satisfied your special requirements.

E.

Program and data collection by computer F.

Energy-saving operation, the controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system.

Standard GB10592-89 Technical requirements for high and low temperature test chamber

GB2423.1-1989 Low temperature test mode

GB2423.2-1989 High temperature test mode GJB150.3-1986 High temperature test mode GJB150.4-1986 Low temperature test mode GJB150.9-1986 Warm test method Technical specifications KMH-L series Model 225L Interior size : W700*H700*D480mm Exterior size: W980*H1890*D1460mm Power (KW): 6 Weight(KG): 300 Technical Parameters - - - -

Humidity uniformity | 3.0R.

H | | Heat up time | -40C +100C, within 45 min | Pull down time | +20C -40C, within 60 min | Humidity Range | 2098R.

H | Temp.

constancy | 0.5C | Humidity constancy | 2.5R.

H | Temp.

uniformity | 2.0C | Safety device (standard) | NFB, over pressure, over heat and over current protection for compressor, Over temp.

protect, over load protect of blower, dry heat protection | Interior material | Stainless Steel Plate(SUS 304) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | Ambient Temp.

| +5C +35C | Wiring method | AC 38010 50Hz, 3 phase 4 wires +Ground Wires | Controller | LCD Touch Screen, Chinese or English display selectable | Operation model : Program or fix point running | Memory capacity : 120programs, 1200steps, | All repeat 999 cycles, part repeat 99 cycles | - - - - Detail Image Detail of Simulation Environmental Temperature Humidity Test Machine Detail of Process Packing & Delivery Packing details:

We use pp film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
