47f1205bgydnw2nl Through Hole 1 Port 10 100 Base Tx - China

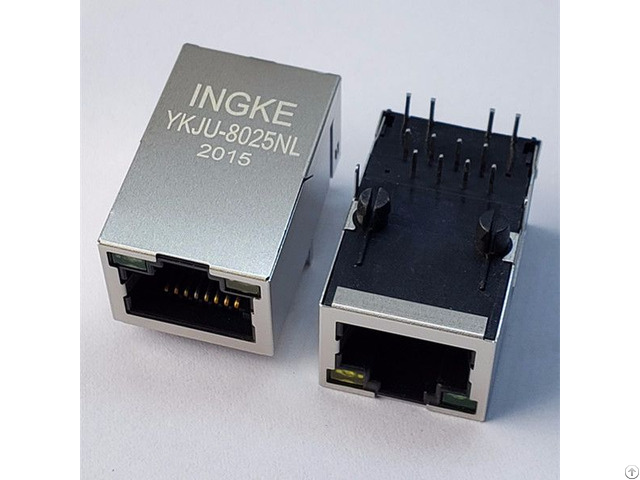

INGKE YKJU-8025NL Direct Substitute 47F1205BGYDNW2NL Through Hole 1 Port 10/100 Base-TX LAN Transformer RJ45 Part Number: 47F1205BGYDNW2NL Made in China: YKJU-8025NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Green - Yellow Number of Cores per Jack: 4 Shielding: Shielded Features: Board Guide Tab Direction: Up Contact Material: Phosphor Bronze Contact Finish: Gold Operating Temperature: -40℃~85℃ Flammability Rating: UL 94 V-0 Contact Finish Thickness: 15µin (0.38µm) Shield Material: Copper Alloy Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

RTG-1A3L9R1A RTB-14GBCC1A RTC-134AAK1A RV1-12108K1A RV1-1100QP1A RV1-16365NUA RV2-10001D13 RV3-1102ADA3 RV5-1000QT33 RV6-1000BD1A RV8-2011T07F RTK-6143W0AQ N4-51078W044-1 N4-6001T083-1 M8-18011W024-1 RB1-115BY01F RTC-114BY01F

GD4-QU-0001 RSG-2H009P5G RB1-2S5BAK1A RB6-123AAQ5A RB4-10HFAG1F RT7-195AAM1F RTA-164AAK1A RT5-3673K24Q

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
