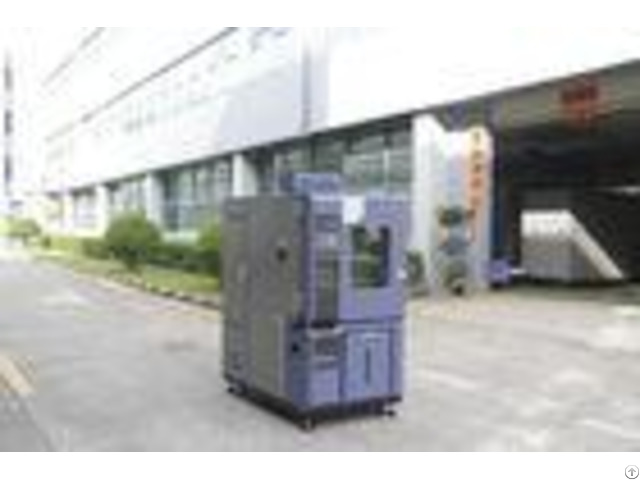

Air Cooled Stainless Steel Environmental Test Chamber With Touch Screen Controller - China

Air cooled Stainless Steel Environmental Test Chamber with Touch screen controller Application As test requirements may be relatively simple or complex, environmental test chambers vary widely in size, ranging from small units designed for placement on bench tops to large walk-in chambers.

Test chambers generally have viewports or video feeds to allow for visual inspection of the sample during the test.

Reach-in chambers provide an opening that technicians may use to handle test samples.

Chambers providing interior visual lighting must take into account the heat generated and compensate accordingly.

As with the wide variance in size, a number of user control options are available, ranging from simple analog indicators up to more modern digital readouts with LCD displays.

Chambers may be computer programmable, and networked or Web-enabled test chambers are also available.

Features 1 - Dedicate touch and excellent user experience

2 - Unique and compact design, top grade appearance, stable performance and easy operation

3 - Can simulate a wide rang of temperature and humidity environments

4 - Capable of testing large components, assemblies, and finished products

5 - Customized sizes and configurations available

6 - One year warranties 7 - Japan imported UP-10D Seamless Welding Machine, especially for copper pipe welding Standard configuration Stainless steel exterior Energy-efficient refrigeration with exclusive electronic expansion valve system Specialized humidity generation and control Unique thermal break construction for extreme testing Sight window*1, cable port(port50mm)*1, shelves*2, chamber lamp*1, power cable *2m No fuse breaker, over pressure, over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection Optional accessories Cable Port: 100mm cable port is available Shelves Ro-type water purifier: R-80/day Provide to keep the humidifying heater and wet bulb wick free from scale.

Inner glass door with operation port A glass door can be provided behind the main door so that specimens can be observed.

Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.

Dehumidifier The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5 5%RH) for electrostatic reliability tests.

Temperature and humidity recorder Temperature 1 pen and humidity 1 pen.

Temperature 3 dots and humidity 1 dot.

Temperature 6 dots and humidity 6 dots.

Defrosting circuit The chamber automatically detects and melts the frost on the evaporator when operating below 0 - Liquid or infection In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber Specifications - - - -

Secifications ( at +20 room temp.

Or+25 water temp with empty load) | Model | KMH-L series | KMH-150L | KMH-225L | KMH-408L | KMH-800L | KMH-1000L | Interrior material(cm) | 60*60*46 | 70*70*48 | 70*75*80 | 100*100*80 | 100*100*100 | Exterrior material(cm) | 88*173*140 | 98*189*146 | 98*194*174 | 128*216*175 | 128*216*195 | Weight(Kg) | 250 | 300 | 420 | 530 | 600 | Equipment power(KW) | 7.5 | 7.5 | 8.5 | 14.5 | 14.5 | Tempeture range | -40 +150 | Humidity range | 20 98%R.

H | Tempeture constancy | 0.5 | Humidity constancy | 2.5% R.

H | Tempeture uniformity | 2.0 | Humidity uniformity | 3.0% R.

H(75%) 5.0% R.

H (75%) | Heating rate | -40+100 Within 45 minutes | Cooling rate | +20-40 Within 60 minutes | Controllor | Touch screen controller English menu Operation mode: setting or program | Refrigeration system | Air cooled (Water Cooled Type is option) | Hermetic compressor, stage refrigeration system | Interior material | Stainless Steel Plate ( SUS 304 ) | Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | System | Balanced & Humidity Control System | Wiring method | AC 38010 % 50Hz, 3 phase 4 wires +Ground Wires | Note: 1 - We reserve the right to change specifications without prior notice 2 - Customized sizes and configurations available | - - - - Why Customers Choose KOMEG? 1 - Specializing in environmental test chamber for 26 years

2 - Valued customers: HUAWEI, TCL, EMERSON, Epson, OMRON, GREE, SGS, FOXCONN, etc.

3 - Imported Tecumseh or Danfoss compressor

4 - LED Touch Screen Controller

5 - One year free parts warranty Large Test Space High & Low Temperature Chamber without humidity

Establish a cultural KOMEG, Build a century brand.

Quality conscious enterprise for quality conscious people.

We'd rather explain for the price than apologize for the Quality life long.

Welcome to visit and advice! There you will have a new concept of opur environmental test chambers.

You will find purchasing become easier and more smoothly.
