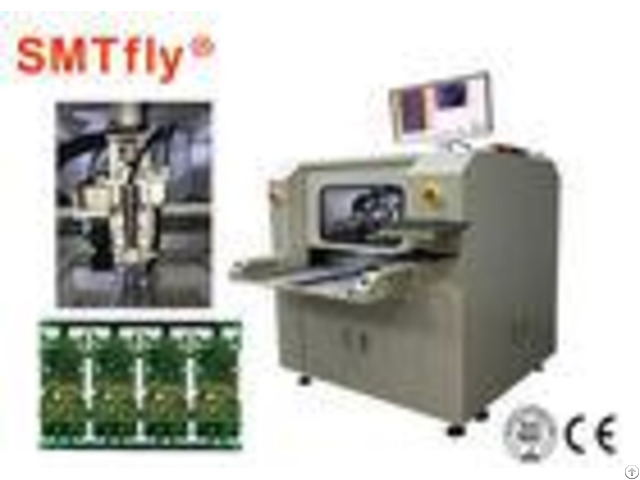

Aluminum Pcba Pcb Separator Machine Stand Alone Routers 3 5kw Ac 380v Vacuum Power - China

320*320mm PCB Stand Alone RoutersFeature: # X10 zoom-in image makes programming easier&increase the accuracy of point setting.

# Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

# AUTO MARK offset system.

CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

# Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting.

And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.

# CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

CNC Cutting Machine-PCB Router SolutionAdvantages: 1 - Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2 - Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3 - Avoid using blunt or fold, produced by mechanical stress.

4 - Suitable for the finished plate arc and line cutting.

5 - Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.

CNC Cutting Machine-PCB Router SolutionParts List: - - - - I.

Hardware | | SPINDLE | KAVO spindle | CCD | Sony 520 line industrial cameras | LENS | Computar EX2C | Screw | TBI Precision ground ball screw imports | Guide | HIWIN widening Imported linear guide rail | MOTOR | JiaBao LCF Series | I/O CONTRONL CARD | HFC PCI-9074 | DRIVER CONTRONL CARD | HFC PCI-9074 | I/O CARD | PCI-9074-64pcs/-38pcs | Static cleanup | STATIC-ST401A Series | Computer | (RMC-8401/6113LP4/300ATX/ 8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) | Machine interface | AOC LCD17", Logitech mouse | 2 - software | | Control system | Windows XP Professional (Service3, v.

3244) | Operation GUI | English Windows XP | Program edit | Inline | Vision system | CCD AOTU offset | Control system | F 1.2.88 version | - - - - Related PCB Dedepanelization Solutions: Additional Information: - - - - Payment Terms | T/T, Paypal | Minimum Order | 1 Set | Lead Time / Delivery Time | 10 Day(s) | Sample Available | NO | Delivery Details | 7-10 days after payment receipt | FOB Port | Shenzhen, | Loading Info | FOB Shenzhen via Sea/Air | Packing Info | plywood case | Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East | - - - -
