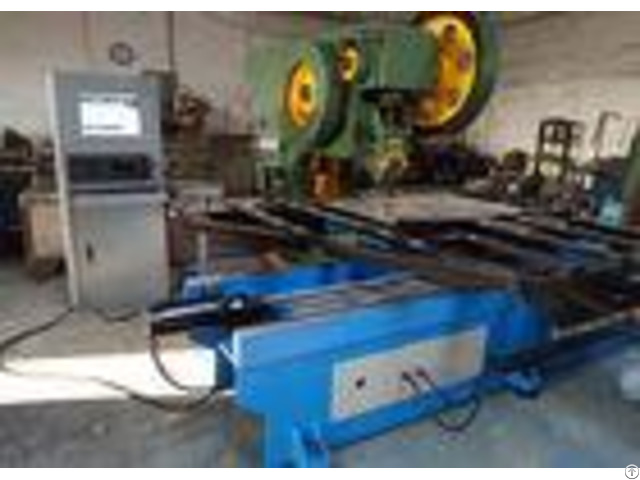

C Frame Industrial Hole Punch Machine Providing Minimum Deflection For Accurate Parts - China
price: check with company for price
40 Tons New product New Generation High Speed Sheet Metal Perforating Machine full automatic sheet metal perforating machine The Machine of Whole structure 1 - C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
Steel-welded frame, high rigidity and less deformation Compact.
Thick plates and large columns provide you with the stable platform you need for your demanding application.
2 - Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical.
Operation space is wide, and the movable bolster could be moved out of frame to set the die.
The structure is simple and the appliance is also beautiful.
3 - High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Detailed specification of perforated sheet machine: - - - - Type | ZCX-A20 | ZCX-B10 | ZCX-150 | ZCX-300 | Max.
Thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm | Width | 500 mm | 500 mm | 1000 mm | 1000 mm | Stroke Per Minute | 180/min | 200-400/min | 150/min | 300/min | Distance of Feed | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | Max.
LWD of Mesh | 20 mm | 10 mm | 25 mm | 25 mm | Motor | 2.2 KW | 2.2 KW | 3 KW | 5.5 KW | Weight | 950 Kg | 950 Kg | 2000 Kg | 2050 Kg | Measurement (mm) | 1090x710x1450 | 1090x710x1450 | 1800x1320x1550 | 1470x850x 1630 | - - - -
Company Contact:
- Posted By: HEBEI MEIRUN WIRE MESH PRODUCTS CO., LTD
- Phone: 86-311-83076968
- Address: North of the Weimin Street Anping County Hengshui Hebei China, Hengshui , Hebei , China
- Email:
Published date: January 9, 2018
- Business Description: Established in the year of 2000, after that we are specialized in the R&D, production and selling about the wire mesh and wire mesh machines.
Making a good advantage of the development of the wire mesh, we are going the way of standards-stop service system.
