Cbb15 Cbb16 Welding Inverter Dc Filter Capacitor - China

price: 1.00 Dollar US$

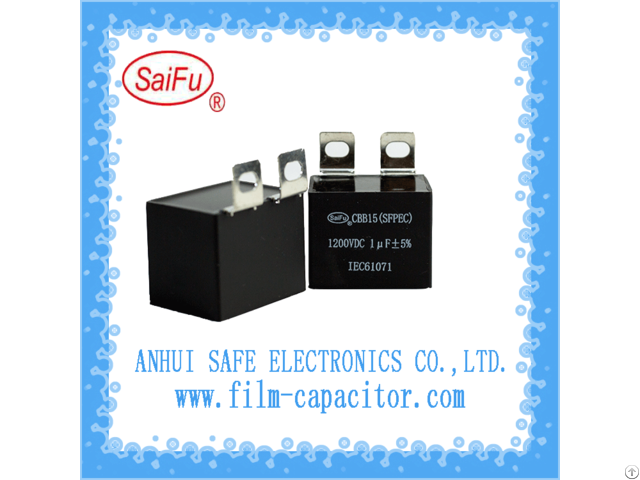

Cbb15 Cbb16 Welding Inverter Dc Filter Capacitor

Products Photos Catalog Cbb15 Cbb16 Welding Photos Catalog

1 - CBB15 CBB16 Welding Inverter DC Filter Capacitor

This type of capacitor can be used as intermediate circuit for dc connection and harmonic filter.

Meanwhile, it can also be used as the embedded and absorbing capacitor in the control circuit.

Through special vacuum evaporation process, the coating film has different thickness in different positions.

The special structure of the metallized coating makes the healing property and series resistance more reasonable, and the actual structure makes the performance of the capacitor more thoroughly.

The equivalent series resistance of it is low.

Besides, it is able to withstand high ripple current and high current impulse.

2 - Specificatons

Reference standards: GB/T 3667.1(IEC60252-1)

Climatic category: 40/70/21, 40/85 /21

Class of operation: Class B(10000h) Class C(3000 h)

Class of safety protection: S0/S3

Voltage range: 250VAC, 370VAC, 4 40VAC, 450VAC

Capacitance range: 1~35uf

Capacitance tolerance: ± 5%, ±10%, ±15%

Dissipation factor: 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT: 2Un for 2 seconds

Test voltage terminal to case UTC: (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation resistance: ≥ 3000s(100Hz, 20 ºC, 1min)

3 - Applications

(1)Used in filter, absorption, blocking, resonance circuits of high-frequency switching power supply.

(2)Widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles, etc.

4 - Our Advantages

(1)Leading Technology

*Professional manufacturing capacitor film for decades;Adopt advanced technology to ensure the reliability of products;A number of professional invention patents.

(2)High Quality Products

*Buy new equipment;Continuous innovation in the traditional production process; Quality management service center, quick response service within 24 hours.

(3)Fast Delivery

*Experienced management team, can adjust the flexible delivery time according to customer demand.

(4)Government Support

*Our company was awarded “National High-tech Enterprise ”for three consecutive years;2018 National Intellectual Property Advance Enterprise;2019 Tongling advanced group award.

Build tomorrow's business with today's service!

Welcome to contact with us!


Company Contact:


  • Phone: +8613305620368

  • Address: Qi Feng Road, Shizishan Development Area, Tongling City, Anhui Province, China, Tongling , Anhui , China

  • Email: Email


Published date: July 4, 2019 - Modified date: July 4, 2019

  • Business Description: Anhui Safe Electronics Co.,Ltd. founded in February 2007,is a joint-venture which is invested by Green Group(U.

    K).

    The company is located in Tongling,Anhui,China,spec ialized in manufacturing metallized film for capacitor use and metallized film capacitors.

    Our quality management systems are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications,compliance with EU ROHS directive,with SGS report.

    As a high technology enterprise,we focus on the new energy field and commit to be a world-class supplier.
