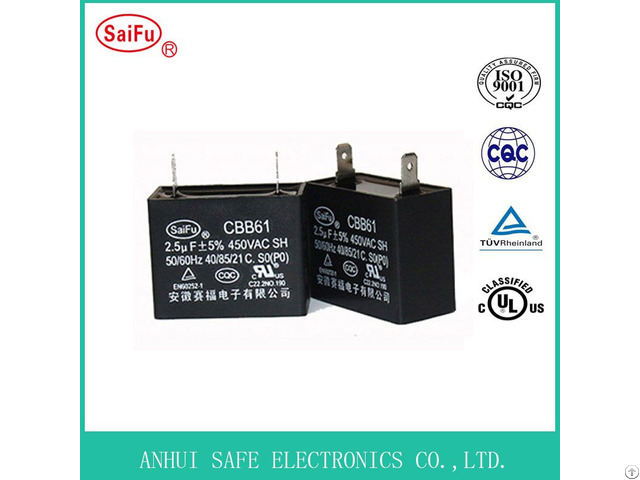

Cbb61 Ac Motor Capacitor - China

*Product Description*

CBB61 Capacitor uses metallized aluminum zinc film with thickened edges as electrode and medium.

This film is wound by winding machine and put into aluminum shell.

Then, the shell is filled with castor oil with high purity to keep it in a vacuum state, and the product can resist high temperature.

This product has better performance and long survice life.

This product also uses the second generation machine explosion-proof design as an explosion-proof method, thus the performance of the product is greatly guaranteed and improved.

Technical Specifications

Model NO.

CBB61 Capacitor

Type Blower Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S0/S3

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 1~35UF

Capacitance tolerance ±5%, ±10%, ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000s(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB61 Capacitor

Production Capacity 3500, 000PCS/Month

MOQ 1 PCS

Size Negotiable

* Note: The Composite Capacitor can be also customized producing according to our customer's request.

*Dimensions(mm)*

Specifications 450VAC 250VAC

1μF 37×13×23 37×13×23

1.2μF 37×13×23 37×13×23

1.5μF 37×14×25 37×13×23

2μF 37×16×28 37×13×23

2.5μF 37×18×28 37×14×25

3μF 47×18×29 37×14×25

3.5μF 47×18×34 37×16×28

4μF 47×18×34 37×16×28

4.5μF 47×22×34 37×16×28

5μF 47×22×34 37×18×28

5.5μF 47×22×34 37×18×28

6μF 47×22×34 47×18×29

6.5μF 48×26×38 47×18×29

7μF 48×26×38 47×18×29

8μF 48×26×38 47×18×34

10μF 58×26×44 47×22×34

12μF 58×26×44 47×22×34

15μF 58×26×44 47×22×34

16μF 58×26×44 48×26×38

20μF 58×35×49 48×26×38

25μF 58×35×49 48×26×38

30μF negotiable 58×26×44

35μF negotiable 58×26×44

Note: Other specifications, size, terminal outside table and price are negotiable.

*Appearance & Application*

Installation Type: Surface Mount

Shape: Squareness

Capacitor Case: Plastic Case

Application: CBB61 Capacitor widely applied to the starting and running of AC single-plase motors at 50Hz/60Hz frequency power, such as air conditioning fans, electric fans, fans exhaust fans.

*Packing&Delivery*


Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~10 days after payment

Port: Shanghai or Ningbo

*Advantages*

1 - Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC, TUV, UL, VDE and other performance certifications.

2 - Reliable productivity: Our company now has 3 high-vacuum coating machines, 10 high-speed Sillting machines, 6 winding machines and for -gun gold spary system and other automatic equipments.

3 - Reasonable price: Executive"Industrial products 10% Profit in the first.

"

4 - Large inventory: This is the guarantee of the timely delivery.

5 - Fexible production: User-specific products, starting from the next single.

6 - Cordial service: 7*24 hours online, prompt reply and timely delivery.

There is no best product, only the most suitable products!

Company Contact:

• Posted By: Anhui Safe Electronics Co., Ltd

• Phone: 0086-0562-2821018

• Address: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, China, Tongling , Anhui , China

• Email:

• Website: http://www.film-capacitor.com

• Business Description: Anhui Safe Electronics Co., LTD., was founded in February 2007 - The company is located in Tongling City, Anhui Province, China, specialized in manufacturing metallized film for capacitor use and metallized film capacitors.

  Now its a member of CCOIC.

  Our quality management system are certified by ISO9001 and our products have CQC, TUV, UL, VDE and other performance certifications, compliance with EU RoHS directive, with SGS report.

  The company has a powerful R & D team, a total of nearly 80 patents, including twelve invention patents.

  It has established a close cooperation relationship with Anhui Province Optoelectronic Applied Engineering Technology Research Center .

  Our company was awarded “National High-tech Enterprise” for three consecutive period in 2012, 2015 and 2018 - In November 2014, the trademarks of companys two future products, “Saifu” for film capacitor and “SF” for capacitor film was rated as provincial “Famous Trademark”.

  On Dec 18, 2014, our company put public listing on Anhui Equity Exchange Center (stock code: 700169).

  In 2016, Standard pilot enterprise of Provincial two-integrated management system.

  In 2017, our company was awarded the honor of "Anhui E-Commerce Demonstration Enterprise” and ”Anhui Digital Workshop", was selected "Anhui Small and Micro Growing Enterprise", and Anhui Province Manufacturing and Internet Integration Development Pilot Enterprise.

  2018 National Intellectual Property Advance Enterprise.

  The company leader Mr.

  Zhou Feng was awarded the Leading Talent of Innovation And Entrepreneurship of Anhui Province.

  The company now has 3 high-vacuum coating machines, 9 high-speed Slitting machines, 6 winding machines and four-gun gold spray system and other automatic equipments.

  Main products: Metallized film for capacitor use, CBB65（CBB61/60） AC motor capacitor and the SFPEC series of power electronics capacitors.

  The Dry DC filter capacitor of SFPEC series was rated as "High-tech Products in Anhui Province".
