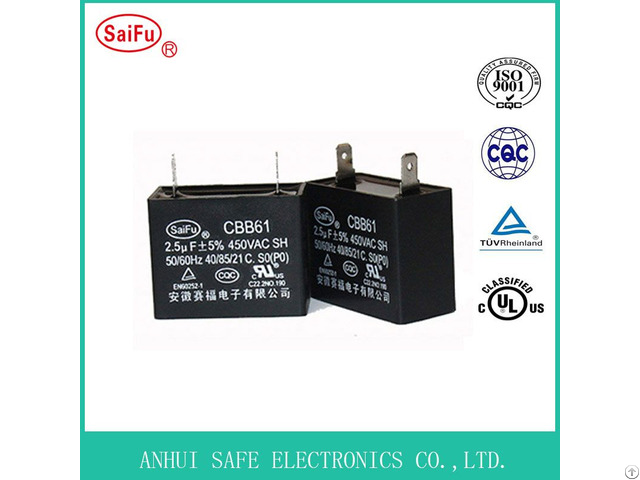

Cbb61 Fan Capacitor - China

*Product Description*

CBB61 Capacitor uses metallized aluminum zinc film with thickened edges as electrode and medium.

This film is wound by winding machine and put into aluminum shell.

Then, the shell is filled with castor oil with high purity to keep it in a vacuum state, and the product can resist high temperature.

This product has better performance and long survice life.

This product also uses the second generation machine explosion-proof design as an explosion-proof method, thus the performance of the product is greatly guaranteed and improved.

Technical Specifications

Model NO.

CBB61 Capacitor

Type Fan Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S0/S3

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 1~35UF

Capacitance tolerance ±5%, ±10%, ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000s(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB61 Capacitor

Production Capacity 3500, 000PCS/Month

MOQ 1 PCS

Size Negotiable

* Note: The Composite Capacitor can be also customized producing according to our customer's request.

*Dimensions(mm)*

Specifications 450VAC 250VAC

1μF 37×13×23 37×13×23

1.2μF 37×13×23 37×13×23

1.5μF 37×14×25 37×13×23

2μF 37×16×28 37×13×23

2.5μF 37×18×28 37×14×25

3μF 47×18×29 37×14×25

3.5μF 47×18×34 37×16×28

4μF 47×18×34 37×16×28

4.5μF 47×22×34 37×16×28

5μF 47×22×34 37×18×28

5.5μF 47×22×34 37×18×28

6μF 47×22×34 47×18×29

6.5μF 48×26×38 47×18×29

7μF 48×26×38 47×18×29

8μF 48×26×38 47×18×34

10μF 58×26×44 47×22×34

12μF 58×26×44 47×22×34

15μF 58×26×44 47×22×34

16μF 58×26×44 48×26×38

20μF 58×35×49 48×26×38

25μF 58×35×49 48×26×38

30μF negotiable 58×26×44

35μF negotiable 58×26×44

Note: Other specifications, size, terminal outside table and price are negotiable.

*Appearance & Application*

Installation Type: Surface Mount

Shape: Squareness

Capacitor Case: Plastic Case

Application: CBB61 Capacitor widely applied to the starting and running of AC single-plase motors at 50Hz/60Hz frequency power, such as air conditioning fans, electric fans, fans exhaust fans.

*Packing&Delivery*


Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~10 days after payment

Port: Shanghai or Ningbo

There is no best product, only the most suitable products!
