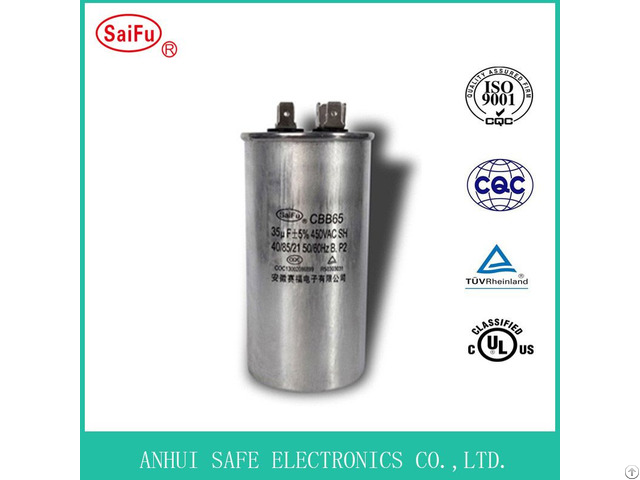

Cbb65 Air Conditioner Capacitor - China

*Product Description*

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.

The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.

The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.

And the reliability is more affirmatively enhanced.

Technical Specifications

Model NO.

CBB65 Capacitor

Type Air Conditioner Capacitor

Structure Single Capacitor

Manufacturing Material Polypropylene

Electrolyte Polypropylene Film

Reference Standards GB/T 3667.1(IEC60252-1)

Climatic category 40/70/21, 40/85/21

Class of operation Class B(10000h) Class C(3000h)

Class of safety production S2

Voltage range 220VAC 370VAC 440VAC 450VAC

Capacitance range 2~100UF

Capacitance tolerance ±5% ±10% ±15%

Dissipation factor 20*10-4(100Hz, 20ºC)

Test voltage terminal to terminal UTT 2 Un for 2 seconds

Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds

Insulation Resistance ≥3000MΩ.

uF(100Hz, 20ºC, 1min)

Altitude ≤2000m

Remain voltage when put into operation No more than 10% of rated voltage

Maximum allowed voltage No more than 1.1 times rated voltage

Maximum allowed current No more than 1.3 times rated current

Package Type Export Standard Carton for CBB65 Capacitor

Production Capacity 3500, 000PCS/Month

MOQ 1PCS

Size Negotiable

* Note: The Composite Capacitor can be also customized producing according to our customer's request.

*Dimensions(mm)*

No Specifications Terminal Size

1 CBB65-450VAC 2μF ~9μF 2×4 or 2×2 pin Φ40×60

2 CBB65-450VAC-10μF 2×4 or 2×2 pin Φ40×60

3 CBB65-450VAC-12.5μF 2×4 or 2×2 pin Φ40×70

4 CBB65-450VAC-15μF 2×4 or 2×2 pin Φ45×70

5 CBB65-450VAC-20μF 2×4 or 2×2 pin Φ45×75

6 CBB65-450VAC-25μF 2×4 or 2×2 pin Φ50×85

7 CBB65-450VAC-30μF 2×4 or 2×2 pin Φ50×100

8 CBB65-450VAC-35μF 2×4 or 2×2 pin Φ50×100

9 CBB65-450VAC-40μF 2×4 or 2×2 pin Φ50×100

10 CBB65-450VAC-45μF 2×4 or 2×2 pin Φ50×100

11 CBB65-450VAC-50μF 2×4 or 2×2 pin Φ50×125

12 CBB65-450VAC-55μF 2×4 or 2×2 pin Φ50×125

13 CBB65-450VAC-60μF 2×4 or 2×2 pin Φ50×125

14 CBB65-450VAC-65μF 2×4 or 2×2 pin Φ55×125

15 CBB65-450VAC-70μF 2×4 or 2×2 pin Φ55×125

16 CBB65-450VAC-80μF 2×4 or 2×2 pin Φ60×125

17 CBB65-450VAC-90μF 2×4 or 2×2 pin Φ60×125

18 CBB65-450VAC-100μF 2×4 or 2×2 pin Φ63.5×125

* Note: Other specifications, size, terminal outside table and price are negotiable.

*Appearance & Application*

Installation Type: Surface Mount

Shape: Cylinder or Ellipse

Capacitor Case: Aluminum Case

Application: CBB65 capacitor applied to General purpose, AC motor, Power, Lighting, Air Conditioner, High voltage, Automobile, Fan, etc.

CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

*Packing&Delivery*


Packing: Export Standard Carton Packing for Capacitors

Delivery Detail: 7~10 days after payment

Port: Shanghai or Ningbo There is no best product, only the most suitable products!
