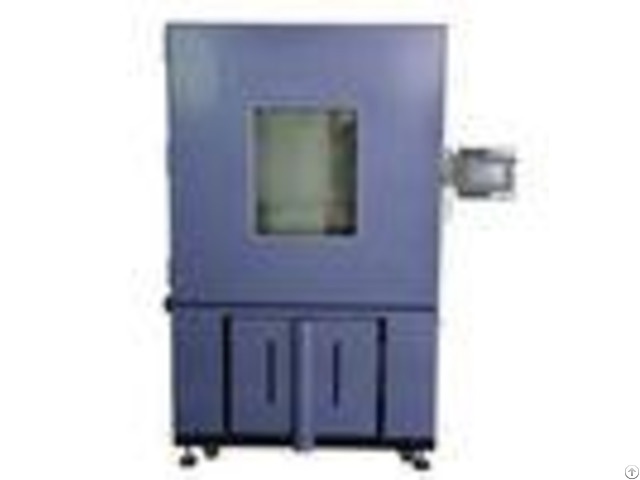

Ce Stand 1000l Programmable Constant Temperature Humidity Environmental Test Chamber - China

CE stand 1000L Programmable Constant Temperature Humidity Environmental Test Chamber Standard configuration Stainless steel exterior Energy-efficient refrigeration with exclusive electronic expansion valve system Specialized humidity generation and control Unique thermal break construction for extreme testing Sight window*1, cable port(port50mm)*1, shelves*2, chamber lamp*1, power cable *2m No fuse breaker, over pressure, over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection Optional accessories Cable Port: 100mm cable port is available Shelves Ro-type water purifier: R-80/day Provide to keep the humidifying heater and wet bulb wick free from scale.

Inner glass door with operation port A glass door can be provided behind the main door so that specimens can be observed.

Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.

Dehumidifier The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5 5%RH) for electrostatic reliability tests.

Temperature and humidity recorder Temperature 1 pen and humidity 1 pen.

Temperature 3 dots and humidity 1 dot.

Temperature 6 dots and humidity 6 dots.

Defrosting circuit The chamber automatically detects and melts the frost on the evaporator when operating below 0 - Liquid or infection In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber serif!zlrFL mso-font-kerning: 0pt'> F.

Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system.

Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.

Material: Interior material: Stainless Steel Plate SUS304# Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304# Insulation material: Rigid polyurethane Foam and Glass Fiber Wool Refrigeration system: Water Cooled Hermetic compressor, stag refrigeration system Applications Temperature and Humidity Environmental Test Chamber is able to provide rapid product temperature change rates and use varying levels of relative humidity to locate design problems prior to shipping your products, improving product quality and reliability.

Specifications - - - - Model | ESS-SL | 1000SL15 | Working Chamber Volume(L) | 1000L | Temp Rate of Change( C /Min) | 15 C /Min | Temperature Range | -70 C+100 C( Rapid Temp Change -55 C+85 C Full Linear Control) | Humidity Constancy | 0.5 C | Temp Constancy | 3.0 C | Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel | Interior Material | Stainless Steel Plate(SUS 304) | Insulation Material | Rigid Polyurethane Foam | Safety Devices | over pressure, over heat and over current protection for compressor, over temp.

protection, | Compressor | Semi-Hermetic Compressor | Cooling Mode | Water Cooled | Control system | Balanced Temperature & Humidity Control System(BTC type) | Heater | Iron-chrome wire heater | Blower | Centrifugal Blower | Observation Window | Glass incorporating heat generator | Temp Sensor | Pt-100 | Controller | Touch screen programmable controller | Ambient Temp.

| +5C~+35C | Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | Note: 1 - We reserve the right to change specifications without prior notice 2 - Customized sizes and configurations available | - - - - Features A.

Reliability testing based on current test standards in the temperature range of -40 C to 180 C and 10% to 98% R.H. B.

The ideal simulation chamber for all heat and cold testing in the traditional temperature range -40 C and 150 C.

C.

Forced ventilation loops design, balance temperature & humidity control system (BTHC).

D.

We can provide custom-made machine and optional accessories satisfied your special requirements.

E.

Improved programming and data collection via computer F.

Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system.

Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.

Standards Implemented and met GB10592-89 Technical requirements for high and low temperature test chamber GB2423.1-1989 Low temperature test mode GB2423.2-1989 High temperature test mode GJB150.3-1986 High temperature test mode GJB150.4-1986 Low temperature test mode GJB150.9-1986 Warm test method
