Control Model 1 15kw Fiberglass Weaving Machine Plain Shedding Type 3 5t Weight - China

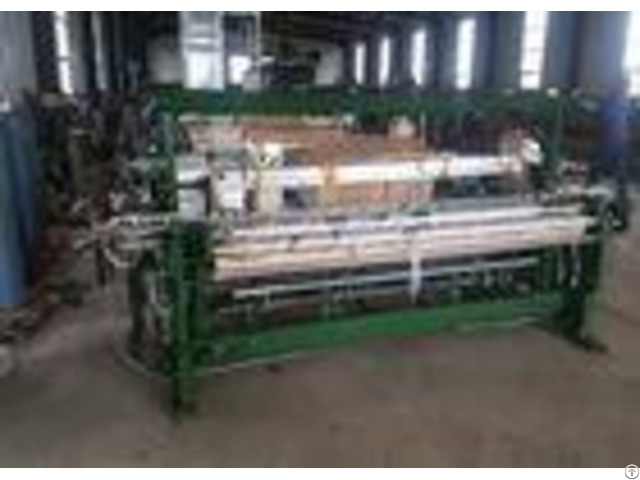

Automatic Fiberglass Mesh Weaving Machine Rapier Loom Fiberglass Weaving Machine Product Description Fiberglass mesh weaving machine is a process of glass fiber materials, woven mesh, fiberglass safety net, wall protection network, mosaic backing with glass fiber mesh equipment.

this machine can produce 1m, 1.2 m, 1.5 m, 2.0 m, 2.3 m, 2.4 m kinds of width specifications; mesh density is adjustable between 4 and 12; Compared with the traditional machine, this machine has the characteristic of high quality, high speed, low noise, low power, mesh accurate and good stability.

A worker can operate 3-6 machines.

A machine can produce two or more of the network products of different widths at the same time.

The fiberlgass wire mesh production line includes fiberglass wrapping machine, fiberglass rapier loom and impregnation and curing station, rewinder, packaging machine,, Electric heating colloid production reactor (optional).

Warping Wire Machine 1 - Power: 3.0kw 2 - Speed: 1000m/h 3 - Weight: 1.8T Fiberglass Mesh Weaving Machine 1 - The width: 2m 2 - Power: 1.5kw 3 - Speed: 90-110 s.

q m/h 4 - Over size: 2000x3100x1500mm 5 - Weight: 2T Fiberglass mesh coating machine 1 - control mode electrical control cabinet 2 - power 35 kw 3 - heating time 10-20 minutes 4 - speed: 500-1000m/h 5 - width: 1m(cutomized) 6 - weight: 3.5T Detailed Information - - - - Reed space | 190, 230, 280, 340, 380, 450cm other size as customer required | Shedding type | plain, cam | Driven type | four shedding level-crank rod | Let-off type | weft holder positive feeding | Main motor | main motor 1.8kw/2.2kw (for cam shedding 2.2kw/3.7kw) control model 1.15kw electric cutting 1kw | Take-up type | auto tension control motor: max diameter 1200cm | Weft insertion | mechanical or electric feeder (single or double nozzle electric feeder) | Dehumidifying method | squeeze and suck | Weft density | 500D~2000D | Cutter | mechanical | Speed | Plain shedding Cam shedding Model 190: 700-900rpm Model 190: 700-900rpm Model 230: 600-800rpm Model 230: 600-800rpm Model 280: 500-700rpm Model 280: 500-700rpm Model 340: 400-500rpm Model 380: 300-350rpm Model 450: 280-300rpm | - - - - Product show Equipment parameters: 1 - Control mode: electrical control cabinet 2 - Equipment power: 35 kw 3 - Heating time: 10 to 20 minutes 4 - Production equipment: 500-1000 sq.

m/h 5 - Speed control: the speed regulating motor control, speed 6 - control range of 0-1000 m/h 7 - Special width width: 1 m (customized) 8 - Equipment weight: 3.5T
