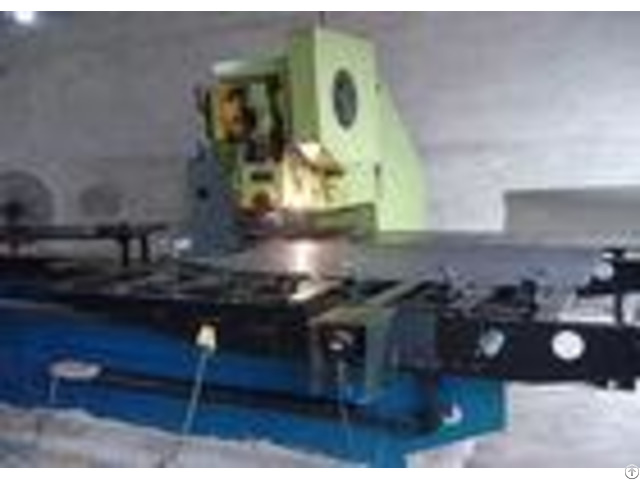

Convenient Operation Sheet Metal Punching Machine Normal Force 630kn 3800kg - China

New product New Generation High Speed Sheet Metal Perforating Machine full automatic sheet metal perforating machine Our machines are used for punching all kinds of expand plate mesh in construction, common hardware, window and door, machine protecting etc.

The metallic materials include: steel plate, iron plate, stainless steel plate, copper plate, aluminum plate, galvanized plate etc.

The nonmetallic material include: Fibre plate, plastic plate, film etc.

The shape of the hole it can serve: round hole, long round hole, square hole, triangle hole, diamond hole, hexagonal hole, crossed hole etc.

- - - - J23-63T Power Press Technical Parameters | Normal Force ( KN ) | 630 | Worktable Dimension (W*L ) ( mm ) | 420*650 | Slider Travel ( mm ) | 80 | Thickness of Bolster ( mm ) | 70 | Number of Stroke ( m/min ) | 50 | Power ( KW ) | 5.5 | Maximum Closure Height ( mm ) | 250 | Dimension ( L*W*H ) ( mm ) | 1740*1100*2520 | Closure Height Adjustment Range ( mm ) | 50 | Weight ( KG ) | 3800 | Distance from Slide Block Centre Point to Press Body ( mm ) | 250 | Dimension of Slide Block Bottom Surface ( W*L ) (mm ) | 240*280 | - - - - Detailed specification of perforated sheet machine: - - - - Type | ZCX-A20 | ZCX-B10 | ZCX-150 | ZCX-300 | Max.

Thickness | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm | Width | 500 mm | 500 mm | 1000 mm | 1000 mm | Stroke Per Minute | 180/min | 200-400/min | 150/min | 300/min | Distance of Feed | 0-1.2 mm | 0-1.6 mm | 0-1.2 mm | 0-4 mm | Max.

LWD of Mesh | 20 mm | 10 mm | 25 mm | 25 mm | Motor | 2.2 KW | 2.2 KW | 3 KW | 5.5 KW | Weight | 950 Kg | 950 Kg | 2000 Kg | 2050 Kg | Measurement (mm) | 1090x710x1450 | 1090x710x1450 | 1800x1320x1550 | 1470x850x 1630 | - - - - FAQ 1 - Q: Are you a manufacturer or trading company? A: We are professional manufacturer of machinery.

2 - Q: How about your manufactory in China? A: SJBM located in Wuhan City, Hubei province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines, We have worked about 10 years in this area and totally have about 50 staffs.

Rich experience in this field with professional technical supporting and oriented service.

3 - Q: How to choose the model of the punching machine? A: Pls inform us following details: - The thickness of your sheet? - The width of your sheet? - The material of your sheet? 4 - Q: How about your machine quality? A: SJBM is a mature brand in China.

Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard.

Our machines distribute worldwide to about 50 countries where there are metal plate industry.

And where there are our machines, there are good reputation and terminal user satisfaction.
