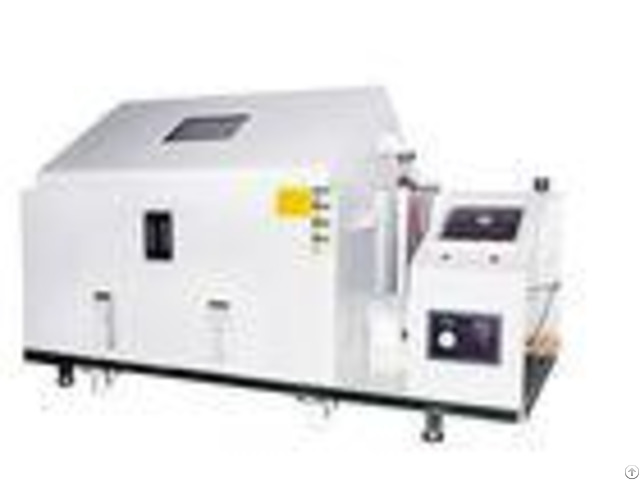

Customized Nozzle Salt Spray Test Machine Stainless Steel With Waterproof Structure - China

Nozzle Salt Spray Test Chamber for Hosipital, Lab, Electronic Acss Nss Testing Specifications: 1 - The Salt Spray Test Machine is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.

2 - A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.

3 - Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

4 - Control System High precision P.I.D.

temperature control meter with its error 0.1C.

Product parameters - - - - Model | HST-SS-60 | HST-SS-90 | HST-SS-120 | HST-SS-160 | HST-SS-200 | Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x120x60 | External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 | Inside temp | Brine test method(NSS ACSS)35C1C/Corrosion resistance test method (CASS)50C1C | Brine temp | 35C1C 50C1C | Test chamber volume | 108L | 270L | 480L | 800L | 1440L | Brine chamber volume | 15L | 25L | 40L | 40L | 40L | Compressed air pressure | 1.000.01kgf/cm2 | Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | Test room relative humidity | 85%RH or more | PH | 6.5~7.2 3.0~3.2 | Spray method | Programmable spray (including the continuous spray interrupted spray) | Power | AC220V110A | AC220V115A | AC220V120A | AC220V120A | AC220V130A | - - - - Features: # # *Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted.

Water level is insufficient warning to ensure that the use of safety.

# *Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.

# *Attached double over-temperature protection, over-temperature warning display, and cut off the heater power to ensure that the use of safety.

# *Inlet temperature controller using a digital display, PID control, error of 0.1 C.

# *Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.

# *Spray tower attached to the conical dispersion, with oriented fog, the function of regulating the amount of fog and uniform loading amount of fog.

# *The saturated air barrel using Henry's law, be heated humidification, and provide the required humidity of the laboratory.

Its made of SUS # 304 stainless steel insulation effect, with visual connectivity and drainage switch, in order to visually saturated air the barrel water level and cleaning.

# *With automatic defogging device that can clearly watch the specimen in test chamber.

# *Fog sealing sink, water seal to prevent fogging leakage.

# *Laboratory sealing cover material for Taiwan imported PVC board, pneumatic cylinder automatic lifting way, easy to operate safe and reliable.

# *The import timer using digital display, accurate timekeeping, H.

M.

seconds S can be segmented set any required test time, adjust the time range from 0.01 seconds to 9999 hours.

* Reagent supplement bottles hidden attached water level viewing window, easy to clean and should not be broken.

# *Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.

Applicable Industries: Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.

anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Corresponding Standard: GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59 Packing&Shipping: Packaging Details: Strong wooden case for salt spray test chamber Delivery Detail: 20 days after getting the payment or Spot Our Services: We are here to help you.

Services available: Replacement manuals # # Consumables and replacement parts # On-site maintenance and repair # Warranty support # Over-the-phone service support and advice # If you have an HSTchamber, we will do our best to help you in whatever way we can.

Manuals: PDF files of manuals for current models are available free.

Please contact us to request a copy.

Older and printed copies at additional charge.

Service repair: We prefer you contact us direct at the factory with any problems you may be experiencing.

We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs.

Rarely can a local contractor get all that done for you as quickly as we can.

We also guarantee the work .
