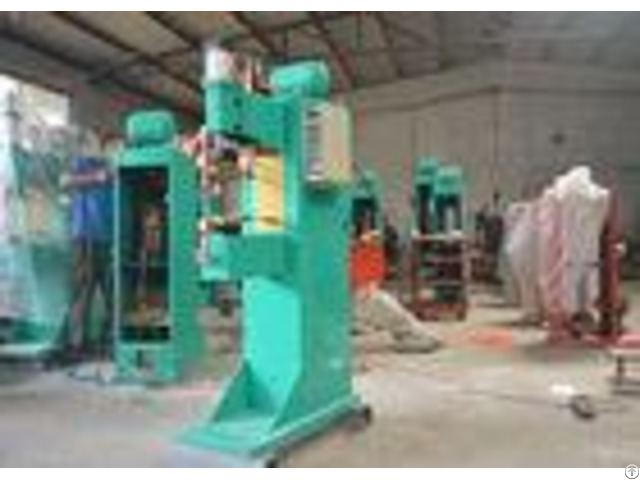

Dn Series Pneumatic Welding Machine Precise Mould Designed For Ac Long Arm Wires - China

DN Series Pneumatic AC Long Arm Wires Pnuematic Spot Welding Machine Descriptions Pneumaticprojection spot welder ptice, spot welding machine in the hardware industry.

Portable spot welding machine price, butt welding machine price, seam welding machine price, automatic welding machine price, capacitor energy-storing welding machine price.

(1) Full digital microcomputer control system, Mitsubishi, Siemens and OMRON and so on famous PLC controller have beenused in our machine.

Welding control has transparent safety cover to protect a keypad and has a lock to allow onlyauthorized personnel to access the program.

(2) Welding Control maintains main parameters such as welding current; weld time, off time, etc.

with digital accuracy andconvenient user interface.

(3)Three grades discharge design(Prepressing, welding and tempering), equipping functions of Constant Voltage, ConstantCurrent, Constant Heating, Slowly Increasing, Slowly Decreasing, save multi-group Schedule Number, etc.

easily meetcustomers high requirements of welding quality.

(4)Integrated high-strength frame Structure of the machine allows the use as Projection or Spot welder.

(5)Improved copper water-cooling transformer system guarantees flawless performance in heavy-duty applications.

(6)Machine is painted with Lead-Free paint.

All materials used in design are environmentally friendly.

(7)Manufactured in accordance with international ISO Standard and CE Certificate.

Detailed Parameters Main circuit adopts large power water-cooling SCR non-contactor switch, and so the output current is more stable.

Steel wheel roll forming machine, wheel rim roll forming machine.

- - - - Model | Rated power (KVA) | Primary voltage (V) | Load duration factor (%) | Arm length (mm) | Distance between arms (mm) | Stroke of top electrode (mm) | Pressure of compressed air (MPa) | Cool Water flux (L/min) | Max.

welding thickness (carbon steel mm) | DN-35 | 35 | 380 | 50 | 380 | 210 | 20-80 | 2-5 | 5 | 3+3 | DN-50 | 50 | 380 | 50 | 430 | 280 | 20-80 | 2-5 | 9 | 3.5+3.5 | DN-63 | 63 | 380 | 50 | 440 | 280 | 20-80 | 2-5 | 9 | 4+4 | DN-75 | 75 | 380 | 50 | 450 | 270 | 20-80 | 2-6 | 13 | 4.5+4.5 | DN-100 | 100 | 380 | 50 | 470 | 270 | 20-100 | 2-6 | 13 | 5+5 | DN-150 | 150 | 380 | 50 | 460 | 270 | 20-100 | 2-6 | 13 | 5.5+5.5 | DN-200 | 200 | 380 | 50 | 460 | 260 | 20-100 | 2-6 | 15 | 6+6 | - - - - Mainly confirguration: # Welding Control System: The AC pulse spot welder that we produce can be matched with many types of welding controllers.

# Silicon Controlled: Adopt the SEMIKRON, IXYS from West Germany or IR Silicon controlled from United States; # Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.

# Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.

Features: # Multiple times of continuous discharging # Be able to finish welding at one time # Firm joint # No black coating after welding, no oxidation # Low cost # No need of subsidiary materials # Precise mould designed # Convenient and simple all-directions adjustment # Suitable for welding of multiple types of products Store House
