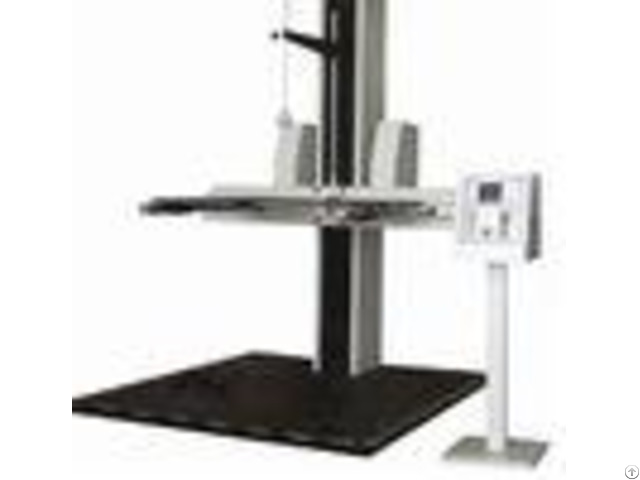

Double Wing Package Drop Test Equipment Advanced With Digital Height Display - China

Double - Wing Package Testing stand with Digital Height DisplanDetailed Product Description - - - - Drop Height: | 2001000 Mm | Max Weight Of Specimen: | 65 Kg | Test Space: | 150015001000 | Impact Board Dimensions(mm): | 1700120016mm | Corbel Dimensions(mm): | 1601808mm | Net Weight(kg): | 600 | - - - - What is Drop Testing? Drop testing determines the ability of a package to withstand the rigors of handling by people and machinery in the distribution environment.

Numerous studies have shown conclusively that a truly flat drop represents the worst possible input to a packaged product.

Therefore, it is crucial that laboratory drop testing be done on a drop test system designed to insure the flattest impacts possible.

In addition to accurate flat drop testing, this machine allows drop testing to be performed on the package's edges and corners, for complete performance evaluation.

Drop Testers allow you to thoroughly examine the effectiveness of package cushioning and its ability to protect your product, dunnage, closures, and other critical design attributes when exposed to all possible drop test orientations.

Uses This series of drop test stand is mainly used for testing simulation package in the transportation, loading and unloading process under the influence of drop impact, resistance to impact strength for the identification of package and the rationality of the design of packaging.

The machine through the way of free fall, for vertical impact test specimens.

Specimen Angle of free choice, edges and three state to drop test, drop test height is prepared in advance.

When the specimen height to preset automatically stop after positioning.

According to the different size of products to choose the distance between the test arm, electric adjustable width.

This machine free release mechanism is flexible and reliable, to ensure that the specimen in the release of free fall and the moment is not affected by anyexternal force, on the way to ensure that the specimen required by the state of falling.

Design standards: # # GB4757.5-84 # JISZ0202-87 # ISO2248-1972(E) Specifications - - - - - - - - Model | | Drop Height | 2001000 mm | Max Weight of Specimen | 65Kg | Test space(mm) | 150015001000 | | | Impact board dimensions (Length*Width*Thickness) | 1700120016mm | | | Corbel dimensions(mm) (Length*Width*Thickness) | 1601808mm | | | Overall dimensions(mm) | 1600x2350x2200 (approximately size needs to see the real machine ) | | | Net weight(kg) | 600 | | | Error for Drop | <2 | | | Error for Drop Height (mm) | 10 | | | Power | 380V, 50Hz, 3PH | | | | Fitting modes | Rhombohedrons, Angle, face | | | Height Display modes | digital | | | Rate of work | 4KWA | | | - - - - | - - - - Characteristics 1 - Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement.

It delivers perfect test for specimen side, edge and corner.

2 - It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.

3 - High Accuracy, direct display 4 - It is steady when it is dropping and lifting 5 - According to different test product size, through the power button to adjust the distance between the bracket, it can test for multiple products Maintain Procedure 1 - Keep the machine clean.

2 - Wipe the metal surface at regular intervals by using boiled oil, wipe the screw and gear with lubricating oil to maintain the machine and keep the machine long-life time.
