Easily Operating Razor Barbed Wire Machine 6000kg Weight Low Raw Materials Loss - China

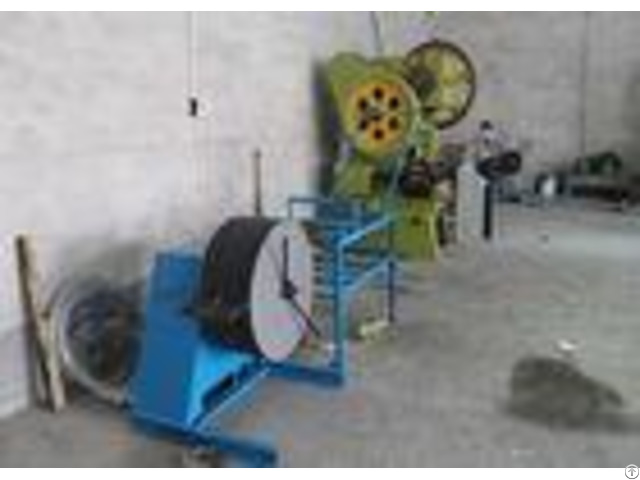

BTO-10 Type Producing 5 Strands Razor Barbed Wire Machine Supplier Factory Product Description Main technical parameter: This machine undertake by three wrap wire machine and one main machin that can cut nine barb belt make up.

It reflects perfectly: 1 - High efficiency: can produce the steel belt 80kgs per hour.

2 - It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.

External dimension: 1 - The wrap wire machine(long *width *high): 3 X 1.3mX 0.7mX 1.1m 2 - The main machine (steel belt presses judging machine) (Long *width *high): 1.1mX 0.85mX2.0m 3 - Accept wire machine(Long *width *high): 1.4mX 0.75mX 1.0m 4 - Total weight: 2.6T This apparatus is made for specializing in the razor barbed wire, mainly divided into two parts: .

The steel belt presses judges part: Adopt JB-23 press machine, pressure 25T The largest rotational speed 100r/min, power 2.2KW Produce razor barbed wire long 25mm, 22mm, 15mm, 11mm once of razor blade, etc.

Various specifications should make the mould.

Cut out steel band divide 9 steel belt into partly, produce board thick 0.5mm per hour, of long 22mm, 80kgs of steel band .

Some of taking shape machine of one pack of lines: Wrap up the steel wire and razor blade steel band together, do a round long network that needs.

The power of the electrical machinery: 1.1KW Rotational speed: Adjustable Linear velocity: Wrap up the line 16m every minute The round diameter of the network: 450mm-980mm The output per hour: 50kg Detailed Parameter: Ordinary razor wire making machine specification: - - - - Working Principle: | Motor drive first punching then wrapping wire | Voltage Rating: | 380V | Drive Type: | moter drive | HZ: | 50Hz | Usage: | Razor wire fence | Weight: | 6500kg | Current: | Alternating current | - - - - Razor blade making machine manufacturing equipment Advanced new design, compact structure, easy to operate, easy to adjust and maintain, less energy consumption.

Choose different models, it can produce different razor bland.

It can produce : BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65 Other type, we can design as customers requirment.

- - - - Punching Machine | Model | 5 strips | 9 strips | Power | 2.2KW | 2.2KW | Voltage | 380V/50HZ | 380V/50HZ | Producing Speed | 220-280m/h | 220-280m/h | Pressure | 40T | 63T | Blade Thickness | 0.5 0.05mm | 0.5 0.05mm | - - - - - - - - Forming Machine | Power | 1.5KW | Voltage | 380V/50HZ | Producing Speed | 80kg/h | Diameter Of Steel Wire | 2.5mm | Blade Thickness | 0.5 0.05mm | - - - -
