Fiber Optic Adapter - China

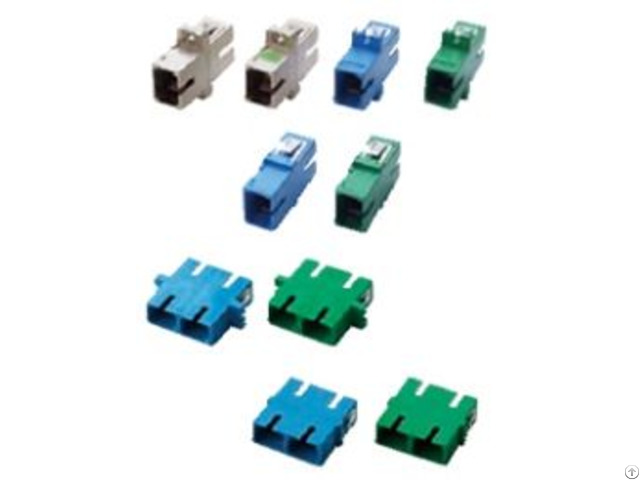

Fiber Optic Adapter

Features:

Complies With IEC 61754-4；

Flammability: UL94 V-0 Grade；

RoHS directive compliance

Sleeve material：

Zirconia Split Sleeve for SM adapter

Phosphorous bronze Split Sleeve for MM adapter；

Application：

Fiber Optic Transmission Network

Cable TV network

Optical Fiber Lan

Optical fiber testing instrument

ODF, rack-mounted and wall-mounted optical fiber wiring unit

Specifications:

Parameters Singlemode Multimode

PC UPC APC PC

Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.2

Return Loss(dB) ≥45 ≥50 ≥60 ≥30

Interchange ability(dB) ≤0.2

Repeatability(dB) ≤0.2

Durability ＞1000matings

Operating Temp.

(℃) -40~75

Storage Temp.

(℃) -40~75

Order Information:



Type Type Fiber type Material Flange type Sleeve Application

SC

LC

FC

ST

SX=Simplex

DX=Duplex

QU=Quad S=Single Mode

M=Multi-mode P=Plastic PBT

M=Metal L=Flanged

S=Flangeless

F=Flangeless with shutter B=Blue G=Green

E=Beige A=Aqua

M=Metal Ni-

Plated Z=Zirconia Split

M=Metal Split

P=PC

A=APC
