Five Strands Razor Barbed Wire Machine Super Efficiency Producing Steel Belt 80kg Per Hour - China

Supplier Factory BTO-30 Type Producing 5 Strands Razor Barbed Wire Machine Product Description Main technical parameter: This machine undertake by three wrap wire machine and one main machin that can cut nine barb belt make up.

It reflects perfectly: 1 - High efficiency: can produce the steel belt 80kgs per hour.

2 - It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.

External dimension: 1 - The wrap wire machine(long *width *high): 3 X 1.3mX 0.7mX 1.1m 2 - The main machine (steel belt presses judging machine) (Long *width *high): 1.1mX 0.85mX2.0m 3 - Accept wire machine(Long *width *high): 1.4mX 0.75mX 1.0m 4 - Total weight: 2.6T This apparatus is made for specializing in the razor barbed wire, mainly divided into two parts: .

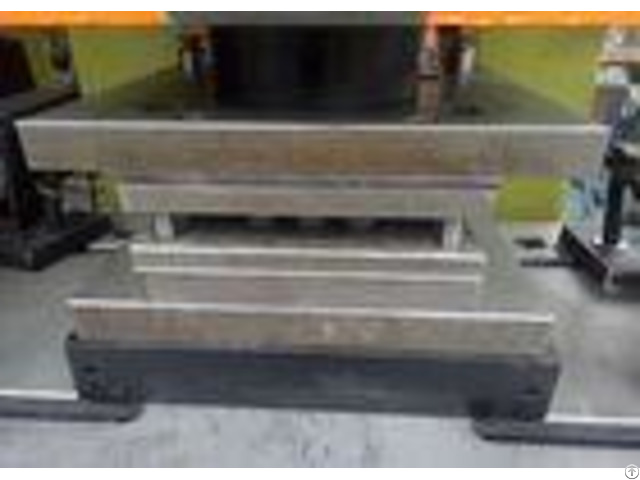

The steel belt presses judges part: Adopt JB-23 press machine, pressure 25T The largest rotational speed 100r/min, power 2.2KW Produce razor barbed wire long 25mm, 22mm, 15mm, 11mm once of razor blade, etc.

Various specifications should make the mould.

Cut out steel band divide 9 steel belt into partly, produce board thick 0.5mm per hour, of long 22mm, 80kgs of steel band .

Some of taking shape machine of one pack of lines: Wrap up the steel wire and razor blade steel band together, do a round long network that needs.

The power of the electrical machinery: 1.1KW Rotational speed: Adjustable Linear velocity: Wrap up the line 16m every minute The round diameter of the network: 450mm-980mm The output per hour: 50kg Detailed Parameter Ordinary razor wire making machine specification: - - - - Working Principle: | Motor drive first punching then wrapping wire | Voltage Rating: | 380V | Drive Type: | moter drive | HZ: | 50Hz | Usage: | Razor wire fence | Weight: | 6500kg | Current: | Alternating current | - - - -
