Flex Pcba Separated Pcb Depaneling Router Machine 1 Year Warranty Smtfly 5s - China

price: check with company for price

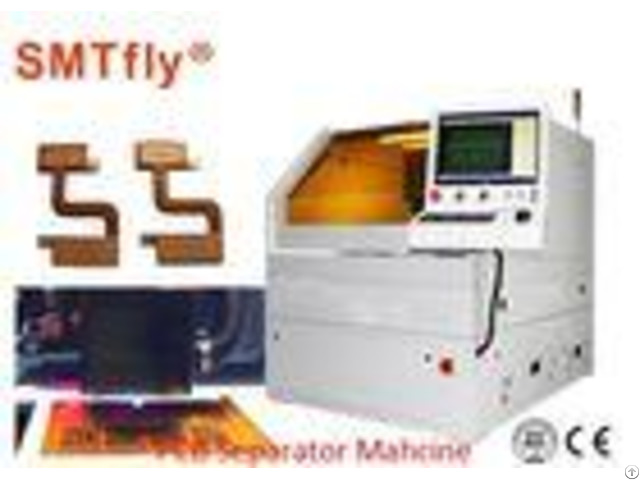

Flex Pcba Separated by UV Laser PCB Depaneling Machine, FPC Cutter Equipments, SMTfly-5SFeatures: # # High capacity BOFA dust collector; # User friendly Window based software; # PCB flexible product jig adjustable for different board size; # High resolution and accurate Z stage with auto-focus function; # Large area low friction front loading platform for sliding multiple product jigs; # Fully covered class 1 safety enclosure; # Able to do cutting and marking together; # Compact size.

Professional FPC Laser Cutting/ Depaneling Solutions-Laser PCB Depaneling MachineSpecification: - - - - Technical Parameter | Main body of laser | 1480*1360*1412 | Weight | 1500KG | Laser | 355nm | Laser | Optoware 10W (US) | Material | 1.2mm | Precision | 20m | Platform | 2m | Working Area | 600*450mm | Maximum | 3KW | Vibrating | CTI(US) | Power | AC220V | Diameter | 205m | Ambient | 202 | Ambient | < 60% | The Machine | Marble | - - - - Advantages of Laser PCB Depaneling/Singulation Machine: # No mechanical stress on substrates or circuits # No tooling cost or consumables.

# Versatility ability to change applications by simply changing settings # Fiducial Recognition more precise and clean cut # Optical Recognition before PCB depaneling/singulation process begins.

# Ability to depanel virtually any substrate.

(Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc) # Extraordinary cut quality holding tolerances as small as < 50 microns.

# No design limitation ability to cut virtually and size PCB board including complex contours and multidimensional boards Laser PCB Depaneling MachineDescription: PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years.

Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods.

However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts.

Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage.

This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods.

Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry.

A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

Application forLaser PCB Depaneling Machine: # # FPC and some relative materials; # FPC/PCB/ RigidFlex PCB cutting, # Camera module cutting.

Part ofProfessional FPC Laser Cutting/ Depaneling Solutions, SMTfly-5S: Why us 1 - Engineers available to service machinery oversea.

Engineers are available to be sent to foreign countries to do machinery training and offer technical support.

2 - One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3 - Effective customer service.

All of us together are stronger and wiser than any one of us individually.

To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making.

To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers 4 - Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 14 years experience on PCB separator machines, PCB router machine and soldering machines.

Our R&D team continuously upgrade the existing machines to meet the market development trend.


Company Contact:


  • Phone: 86-755-33581320

  • Address: Building 2, Gang Hua Xing Industrial Park, Chongqing Road, Fuyong Town, Shenzhen, China 518103, Shenzhen , guangdong , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Established in 2004, SMTfly Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design , development and production of laser pcb depaneling machine, pcb separator, pcb cutting machine , pcb, fpc robotic soldering machine.
