German Imports Compressors High And Low Temperature Test Chamber With 27 Years Technology - China

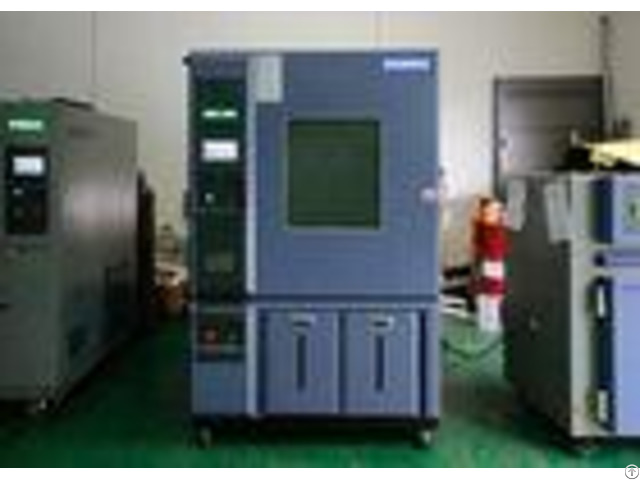

German Imports Compressors High And Low Temperature Test Chamber With 27 Years Technology 1 - High-low temperature test chambers High and low temperature test chamber is a dedicated constant temperature and humidity equipment.

Can accurately simulate the climatic conditions in different environments, apply to health and epidemic prevention, environmental protection, forestry, animal husbandry and other research institutions, university laboratories and production departments for cultural protection, mold plant cultivation and breeding experiments, bacteria and microorganisms.

Our high quality and versatile KOMEG temperature test room is ideal for larger test pieces.

Equipped with a user-friendly, comprehensive programming interface for data retrieval via USB, these rooms can provide a wide range of capacities from 64 to 1000 liters.

Other user options are available, including additional shelves, roof ports and water-cooled chillers.

2 - Features (1) accurate temperature heating and cooling control Features are temperature heating 3 / min, the standard model is 1 / min, no load when the cooling performance, according to 3 / min cooling and heating rate were responsible for custom model temperature cycle test.

(2) high temperature uniform distribution Komeg offers the highest temperature uniformity distribution at 0.5 C, which allows minimization of changes in test results for multiple samples.

(3) wide range of temperature and humidity options With a wide temperature and humidity range, including 95 / 98% rh stability control.

(4) Network solutions are available Rs-485 or rs-232c interface to provide standard communication support.

You can also use an Ethernet (LAN) port as an option for simply connecting a computer, tablet, or other terminal.

Monitoring the operating conditions of the control room, modifying the test conditions, starting or stopping the operation, and other interactions with the room can be done via a web browser.

3 - Temperature and Humidity Test Capabilities Our products are developed from small to large indoor temperature and humidity of the room.

Can reproduce a wide range of climatic conditions, including high and low temperature and combined temperature and humidity conditions.

At the same time, it also supports a meteorological test facility, specifically for telecommunications and radio products to test.

4 - Parameter Specifications: - - - -

Model | KMH-100A | KMH-150A | KMH-200A | KMH-252A | temp.

range | High Temp.

chamber | +60+120 | Heating time | +60+120 Within 20 min | Low Temp.

chamber | 5510 | Cooling time | 2055 Within 60 min | Test chamber | 40150 | Recover time | Eposure 30 min | Eposure 50 min | 5 min | Refrigeration system | Water Cooled | Semi-hermetic compressor, cascade refrigeration system, CFR free referigerant | Controllor | Touch screen controller English menu Operation mode: setting program | Standard Accessories | Shelvesw*2 Cable port(port50mm)*1 | Test weight(Kg) | 10 | 12 | 15 | 18 | Interrior dimensions (cm) | W | 50 | 60 | 67 | 70 | H | 45 | 50 | 60 | 60 | D | 45 | 50 | 50 | 60 | Exterrior dimensions (cm) | W | 154 | 164 | 172 | 175 | H | 184 | 189 | 200 | 200 | D | 170 | 183 | 185 | 193 | - - - - 5 - Details parts
