Hi Temp Zinc Metallized Film Polypropylene 2 5 Margin - China

*Product Description*

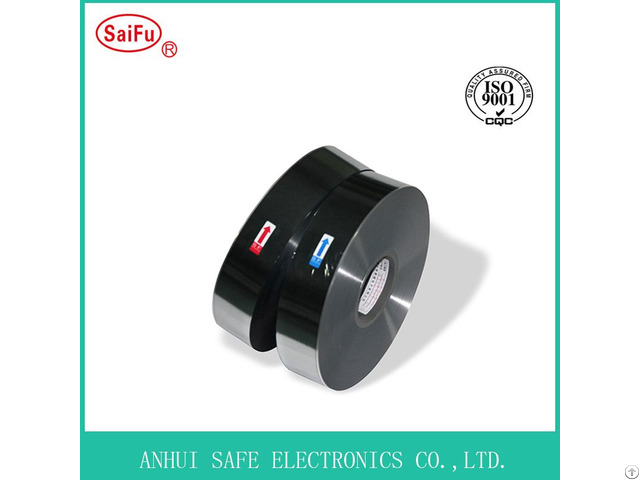

1 - We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.

2 - We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .

3 - We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.

Technical specifications

Model MPP(Metallized Polypropylene Film)

Material BOPP

Hardness Soft

Transparency Opaque

Processing Type Multiple Extrusion

Thickness 1.6-15um

Width 4.5-130mm

Density 0.905±0.005 g/cm3

MOQ 1 kilogram

Margin Value 0.4mm 1mm 1.5mm 2mm 2.5mm

Production Capacity 150 Tons Per Month

Types of Matallized Layer Al/Zn Metallized Film, Al Metllized Film

Size Negotiable

*Types of Matallized Layer: Slope Metallized Film, High Square Resistance Film, Single-Sided Margin, Al/Zn Heavy edge Film(Single Sided), Double-Sided And Central Margin Film, Both Sides Metallized Film, Pattem Film Segmented+T Margin, Pattem Film T Margin.

*Application*

Applied to capacitors for power system, refrigerators and air conditioners.

*Specifications of Metallized film*

*Cores:

Material: Plastic

Width: Film Slit Width±0.3mm

Inner Diameter: 75mm +1.0mm/-0.5mm *Specifications of MPP Film:

Properties Unit Typical value

Density g/cm3 0.905±0.005

Thickness µm 1.6 ~ 15

Tensile Strength Longitudinal

MD (MPa) ≥100

Elongation at Break Longitudinal

MD (%) 20~200

Elastic modulus Longitudinal

MD (MPa) 2800

Heat Shrinkage Longitudinal

MD (%) ≤5 ( 120°C, 10min)

Wetting tension mN/m 38 (Corona treated side)

Surface roughness µm 0.08

Melting point ºC 172

Volume resistivity Ω.

m >1015

Break-dowm voltage V/µm ≥350 ( 23°C, DC )

Dielectric constant 2.2 (20ºC, 1KHz)

Dissipation Factor ≤4×10-4 (20ºC, 1KHz )

RC ΩF ≥5×104 *Packaging & Delivery*

Packaging: Pallets

Packaging Details: Vacuum Aluminum Package (Metallized Film Export Standard Carton)

Delivery Detail: 7~10 days after payment

Port: Shanghai or Ningbo There is no best product, only the most suitable products!

Company Contact:

• Posted By: Anhui Safe Electronics Co., Ltd

• Phone: 0086-0562-2821018

• Address: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, China, Tongling , Anhui , China

• Email:

• Website: http://www.film-capacitor.com

• Business Description: Anhui Safe Electronics Co., LTD., was founded in February 2007 - The company is located in Tongling City, Anhui Province, China, specialized in manufacturing metallized film for capacitor use and metallized film capacitors.

  Now its a member of CCOIC.

  Our quality management system are certified by ISO9001 and our products have CQC, TUV, UL, VDE and other performance certifications, compliance with EU RoHS directive, with SGS report.

  The company has a powerful R & D team, a total of nearly 80 patents, including twelve invention patents.

  It has established a close cooperation relationship with Anhui Province Optoelectronic Applied Engineering Technology Research Center .

  Our company was awarded “National High-tech Enterprise” for three consecutive period in 2012, 2015 and 2018 - In November 2014, the trademarks of companys two future products, “Saifu” for film capacitor and “SF” for capacitor film was rated as provincial “Famous Trademark”.

  On Dec 18, 2014, our company put public listing on Anhui Equity Exchange Center (stock code: 700169).

  In 2016, Standard pilot enterprise of Provincial two-integrated management system.

  In 2017, our company was awarded the honor of "Anhui E-Commerce Demonstration Enterprise” and ”Anhui Digital Workshop", was selected "Anhui Small and Micro Growing Enterprise", and Anhui Province Manufacturing and Internet Integration Development Pilot Enterprise.

  2018 National Intellectual Property Advance Enterprise.

  The company leader Mr.

  Zhou Feng was awarded the Leading Talent of Innovation And Entrepreneurship of Anhui Province.

  The company now has 3 high-vacuum coating machines, 9 high-speed Slitting machines, 6 winding machines and four-gun gold spray system and other automatic equipments.

  Main products: Metallized film for capacitor use, CBB65（CBB61/60） AC motor capacitor and the SFPEC series of power electronics capacitors.

  The Dry DC filter capacitor of SFPEC series was rated as "High-tech Products in Anhui Province".
