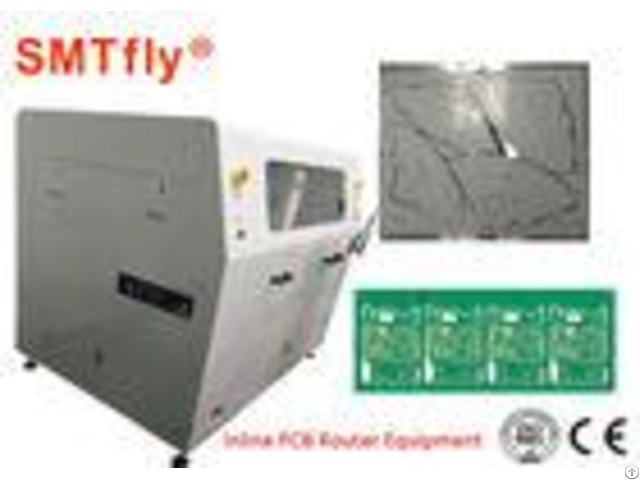

High Accuracy Flex PCB Routing Machine by PCB Depaneling Router Machine, SMTfly-F06 The SMTfly-F06 is a user-friendly and intelligent online circuit board cutting machine equipped with a high-speed CCD vision registration correction device that uses the MARTIN OR algorithm to ensure stable operation at high speed and high accuracy.

Using a clean vacuum device, improve the cleanliness of PCBA.

Use NSK high-speed spindle, cutting stress is small, smooth edge.

Particularly suitable for high capacity, high precision, high demand customers.

PCB Depaneling Router Machine Features: 1 - Use MARTIN OR algorithm Automatically optimize the cutting path; Servo error real-time tracking feedback; Camera fixed-point, positioning axial position compensation.

2 - CCD scanning function The industry-leading full-screen PCBA scanning, changing the traditional visual guidance; Shorten the programming time, the path of real-time display, easy to modify.

3 - Two-dimensional code automatically transfer procedures Two-dimensional code through the fixture can be transferred directly to the program, convenient, simple, not wrong; Intelligent switching products.

4 - Running error, full monitoring Cutting process, marking the error real-time recording; Motion axis error real-time record; The error value can be set according to the product needs.

5 - Cutter intelligent mode: Adjust the depth of the blade according to the PCB thickness to improve the utilization rate and save the cost; According to the product needs to define the use of standard milling cutter; Change the cutter, without redo or modify the program, click the conversion can be achieved.

6 - Transfer order mode, automatic cutting Cutting program with the production model and the number of combinations, based on PMC production plans; Avoid lead production and production capacity is not clear; Avoid non-production process modification procedures; Human-computer separation.

7 - Industry 4.0 - MES system Server data automatically transferred; Upload machine data and production data Real-time monitoring of equipment status.

High Accuracy Flex PCB Routing Machine byPCB Depaneling Router MachineSpecification: - - - - Cutting Speed | 0 ~ 100mm / s | Cutting Repeat Ability | 0.1mm | Machine Repeat Ability | 0.02mm | Positioning Accuracy | 0.02mm | Applicable PCB Thickness | 0.3-2.0 mm | Working Range | Standard(300*300mm)Custom ize | Workbench | Double | Vision System | High Resolution Digital Camera | Drive Motor | AC Brushless Servo Motor | Motor Resolution | 0.01mm | Spindle Speed | Max 60, 000 rpm | Air Pressure | Above 4.5kg/cm2 | Power Consumption | 3KVA | Dust Collection Methods | under the dust (standard) or on the dust | Voltage | AC380V, 50HZ | on the Dust Machine Size | 500*750*1350mm | Under the Dust Machine Size | 665*635*1610mm | Weight | 1300KG | - - - - SpindleforPCB Routing Machine-PCB Separator Equipment: Online PCB Depanelizer Description: With the popularization of Industry 4.0 and the increase of labor costs, automation of production and intelligence have entered the factory each station, post.

SMTfly-06 online PCB Depanelizer design and production in 2010, in a large number of practical use, according to production line health.

Production processes and personnel continue to improve the operation, which has the following advantages.

1 - Software development, software stability, can enjoy the upgrade service.

2 - The whole 9-axis linkage, the use of industrial control systems, stable and reliable scalability 3 - Nozzle multi-point control, can choose the nozzle suck, put the setting, reduce the chances of losing the plate, the local suction nozzle leakage does not affect the whole plate crawl.

4 - Laser foolproof, altimeter to prevent crushing products, intelligent judgment plate in the sub-board situation, if the board is abnormal, the machine will not cut the alarm.
