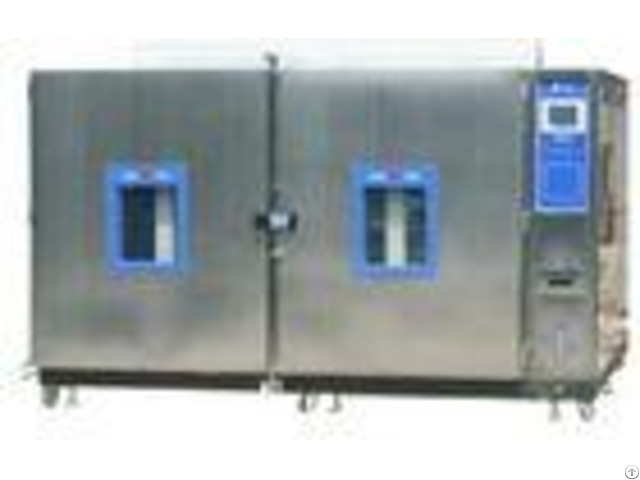

High Accuracy Large Environmental Test Chamber With Stable Controlling Performance - China
price: check with company for price
Large Walk-in Constant Temperature And Humidity Environmental Testing Chamber Equipment Summary: Environmental testing chamber is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer.
It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it appliedto test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.
Corresponding Standard: # # GB11158 Technical conditions for high-temperature testing room # GB10589-89 Technical conditions for low-temperature testing room # GB/T10586-89 technical conditions for humidity testing room # GB/T2423.1-2001 testing methods for low-temperature # GB/T2423.2-2001 testing methods for high-temperature # GB/T2423.3-93 technical conditions for humidity testing room # GB/T2423.4-93 testing method for alternating hot and humid # IEC60068-2-1.1990 testing methods for low-temperature # IEC60068-2-2.1974 testing methods for high-temperature # GJB150.3 High-temperature test # GJB150.4 Low-temperature test # GJB150.9 muggy test # GB/T2423.22 temperature test Features: 1, large walk-in constant temperature and humidity testing machine has a very wide range of controlling the temperature and humidity that can fulfil users needs.
It is stable, balanced heating and humidification performance,, it also can be high accuracy and high stability for temperature and humidity control performance, 2, large walk-in constant temperature and humidity testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display.
Optional equiped with temperature and humidity records 3, Refrigeration circuit of large walk-in constant temperature and humidity testing machine automatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.
4, Door of large walk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.
5, large walk-in constant temperature and humidity test machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
Technical Parameters: - - - - Madel | HST-2003Environmental testing chamber | | Size (cm) | According to customer specified size for design | Temprature range | -65 degree ~+80 degree ( A: 0 degree, B: -20 degree, C: -40 degree, D: -65 degree ) | Humidity range | 20%~95%R.H. | Accuracy/uniformity | 0.1 degree, 0.1%R.H. / 1.5 degree, 5.0%R.H. | Accuracy/volatility | 1.0 degree, 2.0%R.H./0.5 degree, 3.0%R.H. | Cooling time | About 4.0/minute | Inside material | stainless steel | Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | Cooling sytem | Water-cooled / two-stage compressor | Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system | Accessories | recorder(option), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | Controller | Korea TEMI or JapanOYObrand option | Compressor | France's Tecumseh Brand | Power | 1 220VAC10% 50/60Hz & 3 380VAC10% 50/60Hz | - - - -
Company Contact:
- Phone: 86-510-88265125
- Address: No. 290 Furong 2nd Road, Xishan Economic Development Zone, Wuxi City, Jiangsu Province,China, Wuxi , Jiangsu , China
- Email:
Published date: May 28, 2018
- Business Description: Wuxi Haston Industrial Co., Ltd.established in March 2011 with 3000 Square meters workshop, By 2017, Haston have received 2 invention patents and over 30 utility model patents in constant temperature and humidity chamber.
Our products cover environmental, mechanical, electrical, Batteries, and so on.
