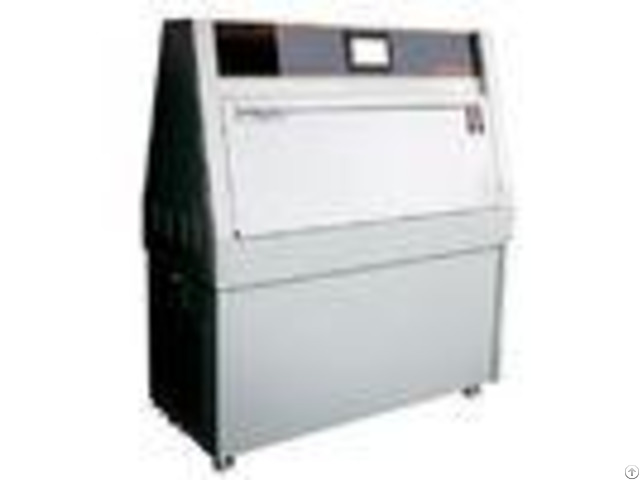

High Precision Uv Weather Resistance Test Chamber With Safety Protection System - China

Climatic Simulate Solar Panel Weather Resistance UV Accelerate Aging Test Equipment / Machine / Instrument / Chamber UV Accelerated Weathering Resistance Aging Test Chamber is equipped with fluorescent UV lamp which can simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light, moisture and temperature at controlled.

It simulates dew and rain with condensing humidity and/or water spray.

- - - -

Model | UV-260 | UV-SI-260 | Internal dimensions (mm) | 450*1170*500 | 450*1170*500 | Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 | Capacity of test specimens | 48 pieces Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm | Controller | Programmable color display touch screen controller | Programmable color display touch screen controller | Temperature range | Ambient~90 2 | Ambient~90 2 | Humidity range | 95%R.

H 2%R.

H | 95%R.

H 2%R.

H | Black Panel Temperature | BPT 30~80 | BPT 30~80 | Irradiation Source | Fluorescent UV lamps (8) - 40 W | Fluorescent UV lamps (8) - 40 W | UV wavelength | 290 ~ 400nm | 290 ~ 400nm | Irradiance Control | N/A | 0.3 ~ 20 W/m2(340 nm / 313 nm) | Water Spray | Spraying water | Spraying water | Distance of Specimen and lamp | 50mm | 50mm | Nominal power | 5000W | 5500W | Power Supply | 380V 50HZ | 380V 50HZ | - - - - Fluorescent UV lamps (8) - 40 W Black Panel Temperature (BPT) at controlled, BPT 30~70 Temperature from Ambient to 90 Spraying water, automatic water supply Water reservoir 50 Liter Can hold 48 pieces of specimens Programmable color display touch screen controller Safety protection system Easy to mount samples on the holders CE and RoHS compliance

environmental simulation industry is a manufacture and exporter of climatic test chambers in China, and have over 10 years overseas marketing in environmental test chambers to more than 25 countries.

We provide test chamber, we provide test solution We manufacture standard and custom climatic chambers We can provide effective solutions to any test requests

Warranty & Service - 3 Years Warranty, Lifelong Follow-up Services.

3 Years Warranty, Lifelong Follow-up Services.

Training how to install, operate and maintain the machine.

Provide calibration service for our customers Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service on site to install and commissioning overseas

Company Contact:

• Posted By: Wuxi Haston Environmental Technology Ind Co., Ltd

• Phone: 86-510-88265125

• Address: No. 290 Furong 2nd Road, Xishan Economic Development Zone, Wuxi City, Jiangsu Province,China, Wuxi , Jiangsu , China

• Email:

• Website: https://www.environmentaltest-chamber.com

• Business Description: Wuxi Haston Industrial Co., Ltd.established in March 2011 with 3000 Square meters workshop, By 2017, Haston have received 2 invention patents and over 30 utility model patents in constant temperature and humidity chamber.

  Our products cover environmental, mechanical, electrical, Batteries, and so on.
