Ingke Ykju 2009nl 100 Percent Cross J3011g21dnl Single Port Smt 100base T Magnetic Rj45 Modular Con - China

price: 1.00 Dollar US$

Ingke Ykju 2009nl 100 Percent Cross J3011g21dnl Single Port Smt 100base T Magnetic Rj45 Modular Con

Products Photos Catalog Ingke Ykju 2009nl 100 Photos Catalog

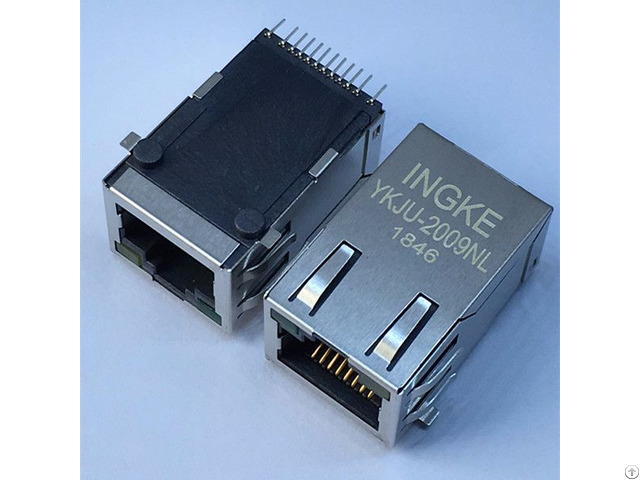

Ingke YKJU-2009NL 100% Cross J3011G21DNL Single Port SMT 100Base-T Magnetic RJ45 Modular Connectors Part Number: J3011G21DNL

Made in China: YKJU-2009NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-TX, AutoMDIX

Mounting Type: Surface Mount

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Yellow

Number of Cores per Jack: 4

Shielding: Shielded

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;JG0-0031NL J20-0013NL J20-0014NL J1012F21KNL JD1-0003NL JD0-0003NL JD1-0004NL JD2-0011NL JD0-0004NL JD3-0001NL JD3-0002NL JT3-1105HL JXD0-0010NL JK0-2500NL JXD0-0012NL JXD0-0029NL JK0-0229NL JXD0-0025NL JXD2-0011NL JXD0-0002NL JXD3-0001NL JXD3-0002NL JXR0-0005NL JXC0-0351NL JT6-1473NL JT6-1480NL J00-0061NL JG0-0032NL JG0-0098NL JG0-0026NL JG0-0027NL JXR0-0001NL J00-0065NL J0G-0007NL JV011I21NLT J0026D01BNL JD2-0010NL


Company Contact:


  • Phone: +8615920079718

  • Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

  • Email: Email


Published date: December 12, 2018

  • Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

    Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

    Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

    Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
