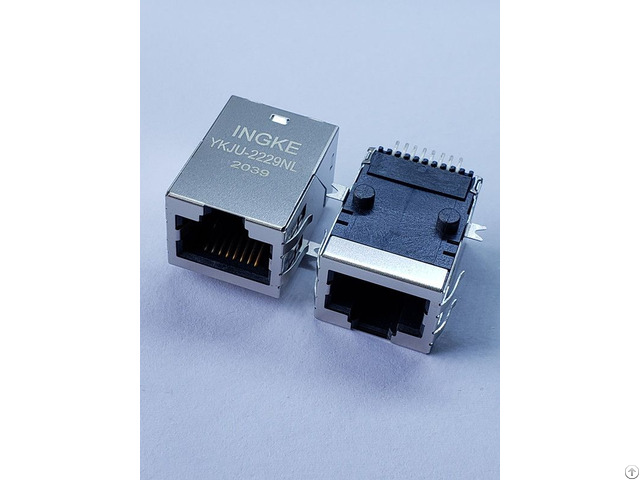

INGKE YKJU-2229NL Direct Substitute WE 7498011002 1 Port 100 Base-T Surface Mount RJ45 Jacks With Magnetics WE

Part Number: 7498011002

Made in China: YKJU-2229NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-T, AutoMDIX

Mounting Type: Surface Mount

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Does Not Contain LED

Number of Cores per Jack: 4

Shielding: Shielded, EMI Finger

Features: Board Guide, Solder Retention

Tab Direction: Up

Contact Material: Copper Alloy

Contact Finish: Gold

Operating Temperature: -40C~85C

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic

In gke Technology Mass production of the following models; 7499021002A 7499111614A 7497011611A 7499011121A 7499211123 7499211002A 74990110030 74990111211 7498011001A 7499111000A 7499051002 7499410420 7499611421 7497111611A 7499311611 7499511610 7499010004A 7498011008 74990101241 7499410221
