Ingke Ykju 63092nldj Direct Substitute Arje 0032 - China

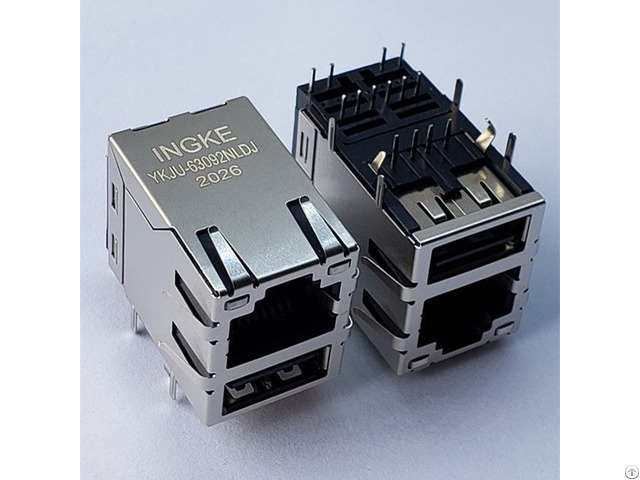

INGKE YKJU-63092NLDJ Direct Substitute ARJE-0032 1 Port RJ45 With USB Magnetic Jack 100 Base-T Through Hole Part Number: ARJE-0032 Made in China: YKJU-63092NLDJ Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 with USB A Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Green, Orange - Yellow Number of Cores per Jack: 4 Shielding: Shielded, EMI Finger Features: Board Lock Tab Direction: Up Contact Material: Copper Ally Contact Finish: Gold Operating Temperature: -40℃~85℃ Contact Finish Thickness: 30µin (0.76µm) Flammability Rating: UL 94 V-0 Shield Material: Copper Ally Housing Material: Thermoplastic Ingke Technology Mass production of the following models;0821-1B1T-43-F C893-1RX1-E3 0826-1XX1-46-F L826-1M1T-23-F 0826-1Z1T-23-F 0826-1B1T-23-F 0826-1D1T-23-F 0826-1E1T-23-F 0826-1M1T-23-F 0826-1L1T-23-F 0821-1D1T-43-F L835-1X1T-S7 08B0-1G4T-36-F 0838-1X1T-W7 G12-1JJT-038 L886-1G2T-BF 0816-1X1T-80-F 0816-1X1T-43-F 0843-2B1T-70-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
