Ingke Ykju 63192nl Direct Substitute 43f 1201dyd2nl - China

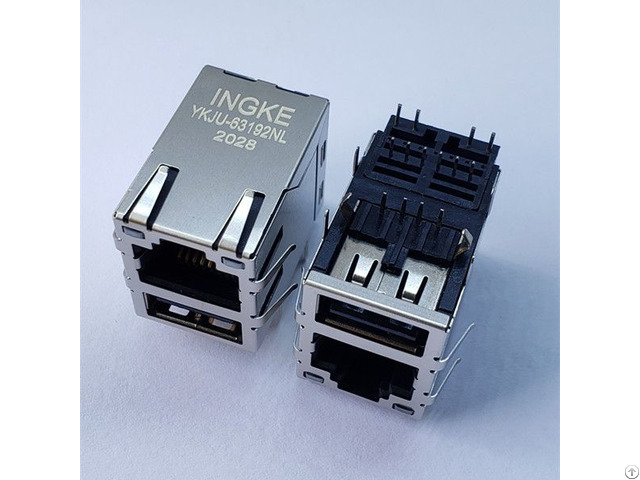

INGKE YKJU-63192NL Direct Substitute 43F-1201DYD2NL 1 Port 100 Through Hole Base-T RJ45 with USB Ethernet Connectors Part Number: 43F-1201DYD2NL Made in China: YKJU-63192NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 with USB A Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-T, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Green, Orange - Yellow Number of Cores per Jack: 4 Shielding: Shielded, EMI Finger Features: Board Lock Tab Direction: Up Contact Material: Copper Ally Contact Finish: Gold Operating Temperature: -40℃~85℃ Contact Finish Thickness: 30µin (0.76µm) Flammability Rating: UL 94 V-0 Shield Material: Copper Ally Housing Material: Thermoplastic Manufacturer: Ingke Technology Co., Ltd Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: (1).

OEM factory for Connector more than 10 years.

(2).

Cost reduction, lead time within 1 week, FREE samples.

(3).

After sales services 24*7 to help you solve any kind of problems (4).

Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%, moreover the price are more competitive for 5-10% over the market (5).

Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm) Ingke Technology Mass production of the following models;

13F-62CGYD2NL 13F-60VGYD2NL 13F-67BYGDD2NL 13F-69GYDNW2NL 13F-69GYD2NL 13F-62AGYD2NL 13F-67CGYDS2NL 13F-64AGGD2NL 13F-64ND2NL 13F-64NW2NL 13F-64GGD2NL 13F-64AND2NL 13F-64GYD2NL 13F-64GYDNW2NL 13F-69ND2NL 13F-61ND2NL 13F-60END2NL 13F-60CND2NL 13F-62ANW2NL 13F-62ADGD2NL 13F-62AND2NL 13F-61FND2NL 13F-66YGDNW2NL 13F-62AGGD2NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
