Ingke Ykju 8019b Direct Substitute Jxd1 0008nl - China

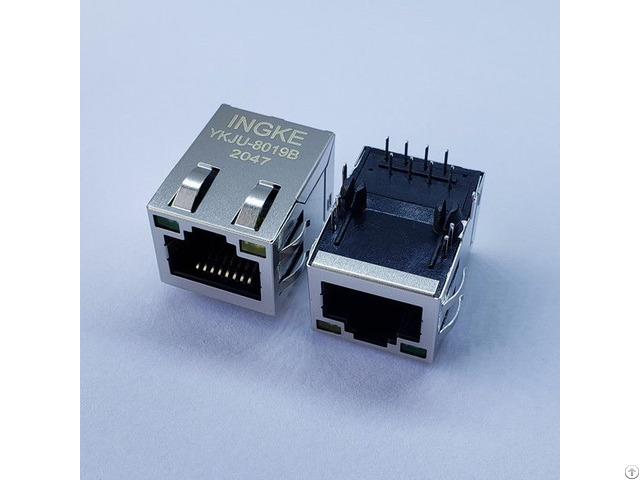

INGKE YKJU-8019B Direct Substitute JXD1-0008NL 1 Port Through Hole RJ45 Ethernet Connectors 100BaseT 8P8C Pulse Part Number: JXD1-0008NL Made in China: YKJU-8019B Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Product Category: Modular Connectors / Ethernet Connectors Packaging: Tray Connector Type: RJ45 Number of Ports: 1 Number of Rows: 1 Applications: 10/100 Base-TX, AutoMDIX Mounting Type: Through Hole Orientation: 90° Angle (Right) Termination: Solder LED Color: Green - Yellow Number of Cores per Jack: 4 Shielding: Shielded, EMI Finger Features: Board Lock Tab Direction: Up Contact Material: Copper Alloy Contact Finish: Gold Operating Temperature: -40℃~85℃ Contact Finish Thickness: 30µin (0.76µm) Flammability Rating: UL 94 V-0 Shield Material: Copper Ally Housing Material: Thermoplastic Ingke Technology Mass production of the following models;

JXD0-2005NL JXD0-4005NL JXD1-0009NL JXD0-0001NL JXD0-0015NL JXD1-0015NL JXD6-1100NL JXD1-0005NL JXD6-0002NL JXD1-9015NL JXD0-0010NL JXD0-0029NL JXD4-1002NL JXD1-0002NL JXD1-9025NL JXD0-4015NL JXD1-0007NL JXD0-9006NL JXD7-0601NL JXD1-0006NL JXD3-0004NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
