Ingke Ykju 8609nl Cross J1012f21knl 100 Base Tx Rj45 Connectors Includes Integrated Magnetics - China

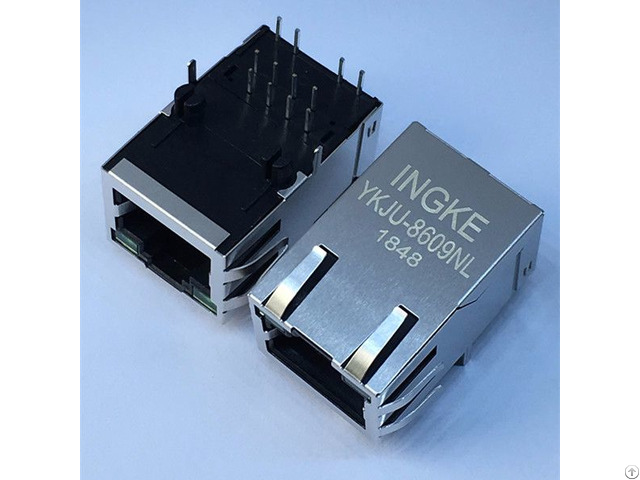

Ingke YKJU-8609NL 100% Cross J1012F21KNL 1 Port 100 Base-TX Through Hole RJ45 connectors includes integrated magnetics Part Number: J1012F21KNL

Made in China: YKJU-8609NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-TX, AutoMDIX

Mounting Type: Through Hole

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Green - Green

Number of Cores per Jack: 4

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;JK0-2500NL JXD0-0012NL JXD0-0029NL JK0-0229NL JXD0-0025NL JXD2-0011NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JXD0-0002NL JXD3-0001NL JXD3-0002NL JXR0-0005NL

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
